Electronics assembly

We perform custom electronics assembly, including SMT component placement on printed circuit boards.

The same quality utilised for aerospace and military deliveries is applied in other sectors as well

The same quality utilised for aerospace and military deliveries is applied in other sectors as well

Assembly, placement, debugging, testing and installation of electronics according to specifications

Our customers are able to use all our strengths for their products.

  • Advanced manufacturing equipment
  • Software for manufacturing process control
  • Highly qualified workers
  • Many years of experience
  • Quality control and standards compliance
  • Fast order processing
  • Precise and reliable solutions

Automated PCB assembly

Automated PCB assembly

Modern technology, precision and speed

PCB component placement is performed on a modern automated line with high precision, speed and automated optical inspection.

Non-contact application of solder paste utilising MYDATA MY500
  • Solder paste or adhesive application without a stencil
  • High speed of up to 30,000 components per hour (IPC9850)

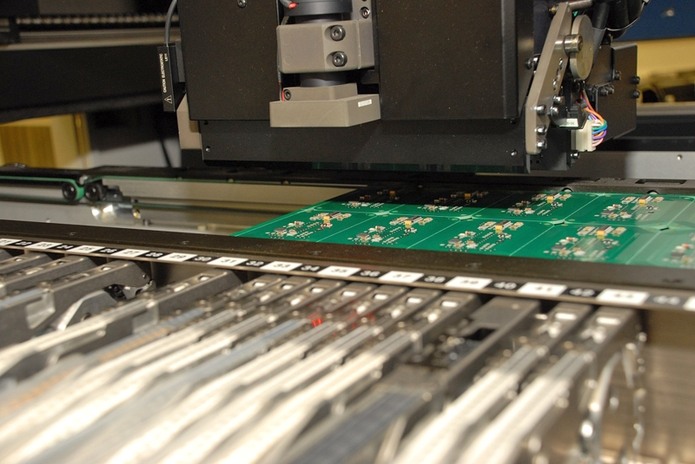

Automated component placement by SAMSUNG SM421
  • Placement speed of 21,000 components per hour (as per IPC9850)
  • Precise placement head with an accuracy of ± 0.05mm

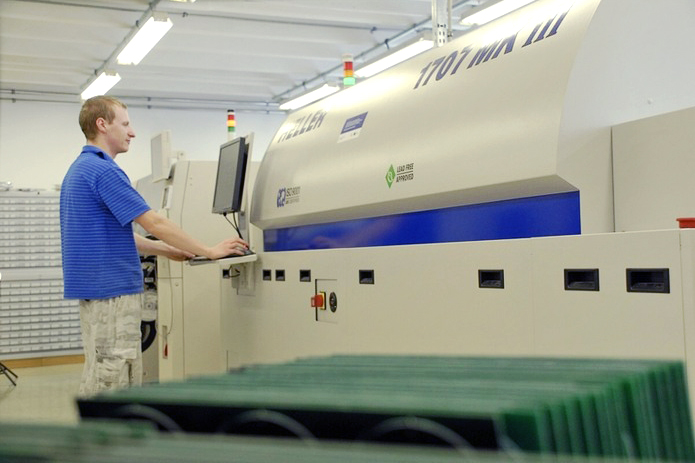

HELLER 1707 MKIII oven for reflowing
  • It contains 7 heated zones with adjustable temperature of up to 350°C and 1 cooling zone.
  • The oven is also suitable for lead-free soldering
  • Fully automated soldering process

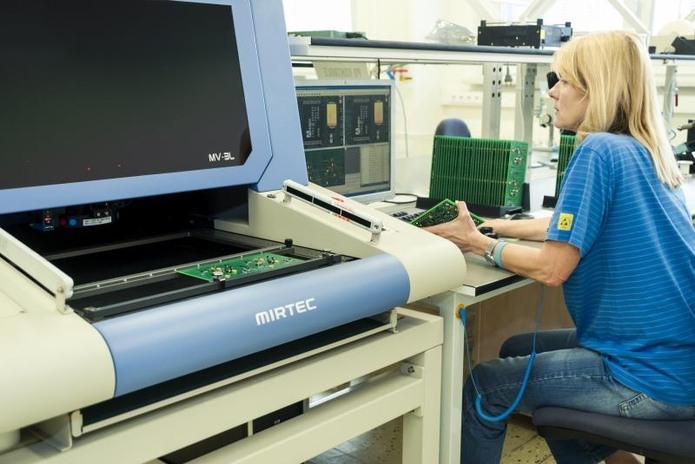

Automated optical inspection performed by MIRTEC MV-3 inspection equipment
  • It also provides data for statistical process control (SPC).
  • Inspection speed of 32cm2/s

Basic parameters for component placement

Basic parameters for component placement

Placement deviation as low as ± 0.03mm

PCB dimensions ranging from 85 x 50mm to 400 x 330mm, with a thickness of 0.5 to 3mm

Component placement packages ranging from 0201 (0.6 x 0.3mm) to QFP, BGA with a 40mm long edge

Accuracy of placement for chip components ± 0.05mm, for fine pitch components ± 0.03mm

SnPb solder based and lead-free soldering technology

Application of no-clean solder pastes based on SnPb, SnPbAg, SnAgCu

Standard electronics assembly

Standard electronics assembly

Employee experience and production process control software

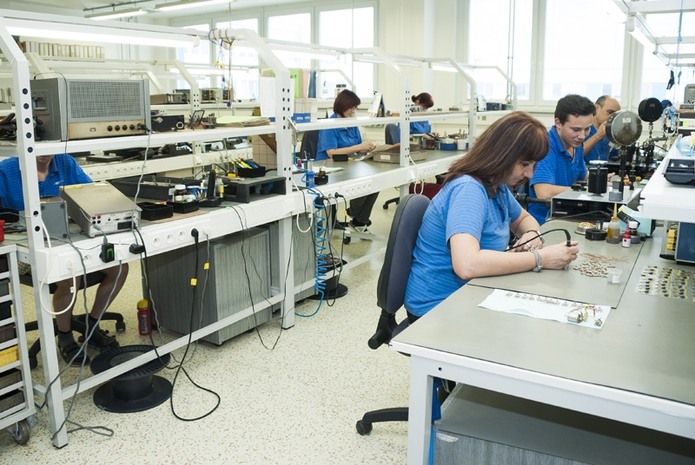

Apart from the automatic component placement line, we also have technical and human resources for the standard assembly of electronics. Our workers are experienced in THT assembly and mounting of electronic sub-assemblies; all production sites meet ESD requirements.

Furthermore, we perform debugging, testing and installation of products according to customer requirements. Final inspections are a matter of course. Before shipping products, we ensure first-rate packing for the safe delivery of your shipment.

Requirements for contract implementation

  • Data file for creation of paste printing software for PROTEL, ALTIUM (ASCII format), or a GERBER file for soldering layer
  • Printed circuit board assembly drawing DWG, JPG, BMP, PDF, PS
  • Text file with components' coordinates
  • List of components
  • Any special requirements for the component supplier, including ESD requirements
  • The PCB should be designed for automated component placement (line-up points, technological environment)
