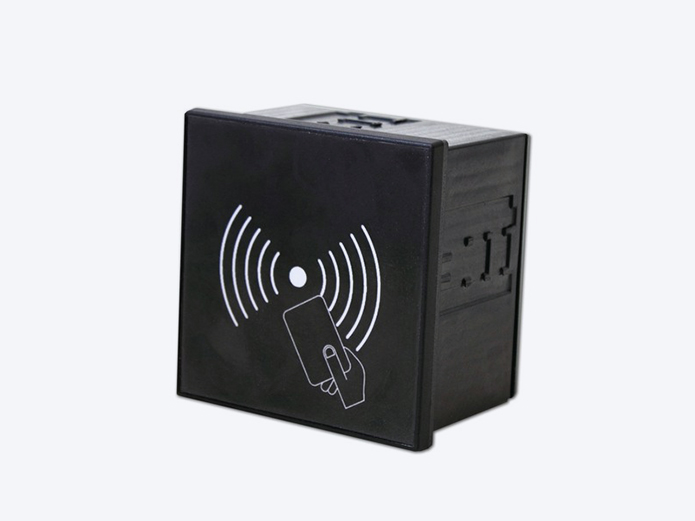

The ES-62.X module is designed to be used in all road and railway vehicles. It provides authorized driver access to TT-62 tachograph sets, as well as blocking vehicle travel. The card reader is connected to a driver database.
Assembly
Nominal supply voltage, current consumption: 24VDC, 70mA
Operating frequency:
Communication: RS485, RS232, CAN bus
Inputs and outputs:
Login notification: Two-colour LED and auditory signal
Firmware upload: via RS232
Internal memory capacity: 1,534 users
Approx. maximum distance for card reading: 7cm
Ambient temperature: -20°C to +65°C
Ambient storage temperature: -40°C to +80°C
Operating position: any
Electrical strength of galvanically separated communication lines: min. 500V
Input polarity-protection: permanent
Relative humidity: max. 95% in the entire range of operating temperatures, non-condensing
Degree of protection: IP40 compliant with ČSN EN 60 529
Max. external device dimensions: 96 x 96 x 65mm
