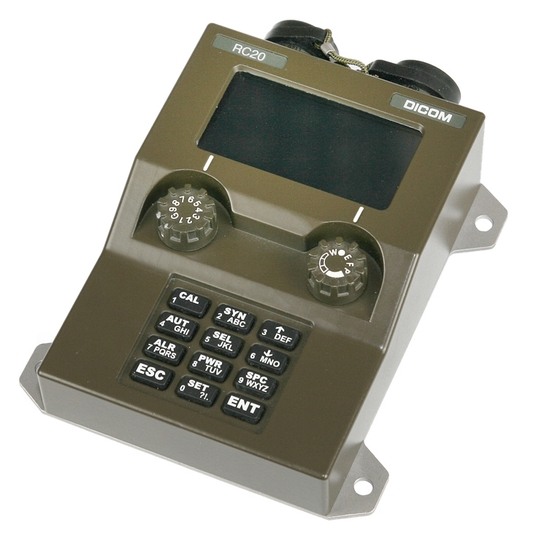

RC20 - Remote control unit set
Set consists of RC20 remote control and cable for transceiver connection. The remote control unit is intended for remote control of RF2050 mobile transceivers. It is recommended to be used wherever the transceiver size or location make it difficult for the operators to access its controls and indicator elements. The RC20 has the same controls as the transceiver and therefore the control method is identical. Operating information is displayed on an active OLED display, which ensures good readability in low light conditions. There are two ten-pin connectors at the top of the remote control panel - one is used to connect the RC20 panel with the REMOTE transceiver connector, the other connector is identical with the AF transceiver connector – it allows you to connect the handset. Vehicle installation using 4 M5 screws, spacing of holes (102 x 107) mm. For more details on RC20 see relevant pages of this website.
| Návod k obsluze RC20 | 2312.010.01 |
|---|---|
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
RC20 - Remote control unit
The remote control unit is intended for remote control of RF2050 mobile transceivers. It is recommended to be used wherever...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RC20 | Remote control unit | 2312.100.01 | ||
| AF cable | 1050.604.01 | 0064301017297 | 5995160033223 |
