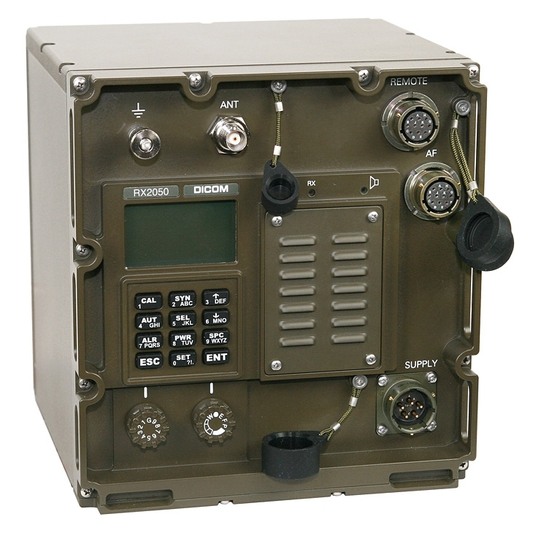

RX2050 - EPM receiver set

Set consists of RX2050 EPM receiver and accessories. RX2050 receiver is a device intended for installation in mobile devices. It ensures reception of RF signals from transceivers operating in 25 MHz to 146 MHz fixed frequency band. Transceiver modulation in 30 MHz to 108 MHz band meets the requirements of STANAG 4204 standard. In other bands, the receiver is capable of receiving signals from #RF2050# or other transceivers that are compatible with the #RF2050# in terms of modulation at these frequencies. The RX2050 receiver also receives signals in frequency hopping mode and it is fully compatible with the #RF2050# and #RF20# transceiver modes. The receiver includes an effective co-site filter that allows simultaneous operation of the RX2050 receiver with #RF2050# transceivers in a single vehicle in 30 MHz to 90 MHz operating band. The condition of compatible operation is the distance between recommended vehicle antenna types of at least 1.5 m and receiving and transmitting frequencies differing by at least 10 %. The RX2050 receiver is not designed for data transmission. For more details on RX2050 EPM receiver and other set components see relevant pages of this website.

PN (RN): 2310.000.83
Návod k obsluze RX2050 2310.010.83
Krátký návod k obsluze RF2050 2310.011.11
Switch display: Catalog / List
Sort by
RX2050 - N/A

RX2050 - N/A

PN (RN): 2310.100.81

Přijímač RX2050 je zařízení určené pro zástavbu do mobilních prostředků.

  • příjem signálů na pevném kmitočtu v pásmu 25 MHz až 146 MHz
  • v módu se skokovou změnou kmitočtu kompatibilní s radiostanicemi systému RF20
  • integrovaný co-site filtr
Mobile set frame

Mobile set frame

PN (RN): 7007.100.14
KČM: 0064570002710
NSN: 5975160055891

The frame is designed for installation of the RF2050 mobile EPM transceiver in all wheeled and tracked vehicles. The transceiver...

RF13.3 - Handset

RF13.3 - Handset

PN (RN): 2022.100.51
KČM: 0064333000731
NSN: 5965160034142
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Handset holder

Handset holder

PN (RN): 2026.700.01
KČM: 0064662900760
NSN: 5965160034225
The holder is used for installation in a vehicle and in fixed locations. The handset is placed in the holder...
Power supply cable 3 m

Power supply cable 3 m

PN (RN): 1050.126.02
KČM: 0067100055749
NSN: 5995160055907
Grounding

Grounding

PN (RN): 1050.993.01
KČM: 0064681901249
NSN: 5995160034143
Type designation Name PN (RN) KCM NSN
RX2050 N/A 2310.100.81
Mobile set frame 7007.100.14 0064570002710 5975160055891
RF13.3 Handset 2022.100.51 0064333000731 5965160034142
Handset holder 2026.700.01 0064662900760 5965160034225
Power supply cable 3 m 1050.126.02 0067100055749 5995160055907
Grounding 1050.993.01 0064681901249 5995160034143
