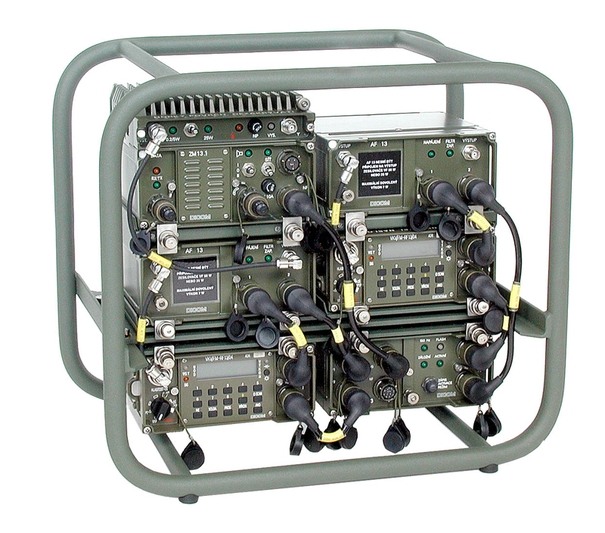

AR13.1 - Automatic rebroadcast station set
Set consists of AR13.1 rebroadcast station (with ZV13.1 amplifier) and accessories. The AR13.1 automatic rebroadcasting station, in stationary or mobile assemblies, is designed to automatically rebroadcast signals, increasing operating range of #RF13# and RF1301 transceiver radio networks in the entire frequency range and in all operating modes, with RF20 and RF2050 transceivers on fixed frequency in 30.000 MHz to 87.975 MHz frequency range. For more details on AR13.1 automatic rebroadcast station and other set components see relevant pages of this website.
| Návod k obsluze AR13.1 | 2018.010.51 |
|---|---|
| Návod k obsluze RF13 | 2000.010.01 |
| Návod k obsluze RF1325/RF1350 | 2011.010.01 |
| Návod k obsluze MD13.2 | 2025.010.71 |
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
AR13.1 - Automatic rebroadcast station
The AR13.1 automatic rebroadcast station, in stationary or mobile assemblies, is designed to automatically rebroadcast signals, increasing operating range...
PK20 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
RF13.2 - Handset with control
The handset can be connected to any of the two audio connectors on the RF13 transceiver or to any transceiver...
CD for modem configuration
ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...
Data cable (RS232C)
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| AR13.1 | Automatic rebroadcast station | 2018.100.62 | ||
| PK20 | Fill gun set | 2320.000.02 | ||
| RF13.2 | Handset with control | 2022.100.02 | 0064333000661 | 5965160034636 |
| CD with AR13 program | 2018.300.01 | 0064783000725 | 7025160020301 | |
| CD for modem configuration | 2025.500.51 | |||
| Data cable | 1050.271.01 | 0064301017336 | 5995160038514 | |
| Data cable (RS232C) | 1050.350.01 | |||
| Power supply cable 3 m | 2010.902.01 | 0064301010467 | 5995160020047 | |
| Spare parts set | 2000.110.03 | 0064751000755 | 5820160021957 |
