RIP23 - Radio VoIP gateway

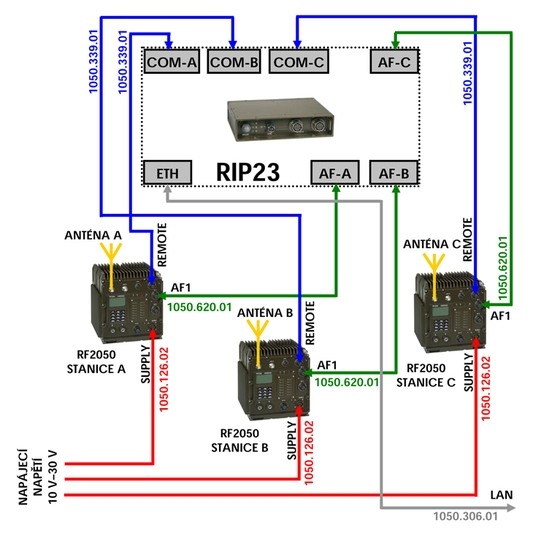

An accessory to RF2050 transceiver that provides connection between the transceiver and VoIP telephony supporting SIP protocol. Connection in the radio channel takes place in the frequency hopping mode secured by TRANSEC and COMSEC keys. RIP23 allows you to connect up to three base stations, enabling them to communicate in three independent radio channels. Selective connection to one of 98 participants or radio contact with all participants of the network can be established in all aforementioned radio channels. Simplex communication in the radio channel is controlled automatically by VOX keying (by the phone user) and PTT (by the radio network user). Notifications of free radio channels to the users are controlled by acoustic signals. RIP23 connects to LAN via standard Ethernet interface. VoIP gateway is configured via web interface by setting SIP and IP parameters. Through the web interface you can register terminal transceivers according to their own addresses in the selected registration mode.
| Podporované audikodeky | G.711, G.722, GSM |
|---|---|
| Protokoly | SIP, SDP, RTP, RTCP, STUN, TURN, ICE, DHCP, DNS, UDP, TCP, NTP |
| Počet portů pro základnové radiostanice | 3 |
| Počet koncových radiostanic | max. 98/port |
| Napájecí napětí (z radiostanice RF2050) | 9 V |
| Rozměry | max. 184 mm x 45 mm x 145 mm [š x v x h] |
| Hmotnost | max. 1 kg |
| Rozsah provozních teplot | -30 °C až +70 °C |
| Rozsah skladovacích teplot | -40 °C až +70 °C |
| Mechanické a klimatické odolnosti | MIL-STD-810E |
| Elektromagnetická slučitelnost | MIL-STD-461 |
| Návod k obsluze RIP23 | 2316.010.01 |
|---|---|
| Návod k obsluze RF2050 | 2310.010.11 |
| Krátký návod k obsluze RF2050 | 2310.011.11 |
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
RF2050 - EPM mobile transceiver
RF2050 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles.
- standard range of functionalities typical for mobile transceivers of RF20 system
- with co-site filter
RIP23 - Radio VoIP gateway
An accessory to RF2050 transceiver that provides connection between the transceiver and VoIP telephony supporting SIP protocol. Connection in the...
AF cable
Communication cable
ETHERNET cable
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF2050 | EPM mobile transceiver | 2310.100.11 | ||
| RIP23 | Radio VoIP gateway | 2316.100.01 | ||
| AF cable | 1050.620.01 | |||
| Communication cable | 1050.339.01 | |||
| ETHERNET cable | 1050.306.01 | |||
| Power supply cable 3 m | 1050.126.02 | 0067100055749 | 5995160055907 | |
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 |
RF2050 - EPM mobile transceiver
RF2050 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles.
- standard range of functionalities typical for mobile transceivers of RF20 system
- with co-site filter
AF cable
Communication cable
ETHERNET cable
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
Vehicle antenna VHF/UHF 2.7 m
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
Groundplane antenna
The antenna is intended for use on stationary posts. The antenna can be installed on all types of masts supplied...
Discon antenna
Telescopic winch driven mast 10 m
Antenna mast
It is intended for use in field conditions to install all types of GROUNDPLANE antennas supplied by DICOM. Individual sections...
PK20 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
RM1301 - Handheld microphone/speaker
RF13.3 - Handset
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Handset holder
Cooling block
The cooling block ensures better heat drainage from the cooling rib of the RF2050 mobile EPM transceiver radiator. We recommend...
Mobile set frame
The frame is designed for installation of the RF2050 mobile EPM transceiver in all wheeled and tracked vehicles. The transceiver...
Frame
The frame is intended for AR20 automatic rebroadcast station and/or it can be used to install two RF2050 transceivers...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF2050 | EPM mobile transceiver | 2310.100.11 | ||
| AF cable | 1050.620.01 | |||
| Communication cable | 1050.339.01 | |||
| Power supply cable 3 m | 1050.126.02 | 0067100055749 | 5995160055907 | |
| ETHERNET cable | 1050.306.01 | |||
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| Vehicle antenna VHF/UHF 2.7 m | 2036.100.86 | |||
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| Groundplane antenna | 2036.100.38 | |||
| Discon antenna | 2036.100.68 | 0064681101609 | 5985160039132 | |
| Telescopic winch driven mast 10 m | 2036.100.70 | 0064681500217 | 5985160039124 | |
| Antenna mast | 2036.100.39 | |||
| PK20 | Fill gun set | 2320.000.02 | ||
| RM1301 | Handheld microphone/speaker | 2009.100.01 | 0064332001036 | 5965160024751 |
| RF13.3 | Handset | 2022.100.52 | 0064333000731 | 5965160034142 |
| Handset holder | 2026.700.01 | 0064662900760 | 5965160034225 | |
| Cooling block | 2310.270.01 | |||
| Mobile set frame | 7007.100.14 | 0064570002710 | 5975160055891 | |
| Frame | 7007.100.72 | |||
| Grounding | 1050.993.01 | 0064681901249 | 5995160034143 |
