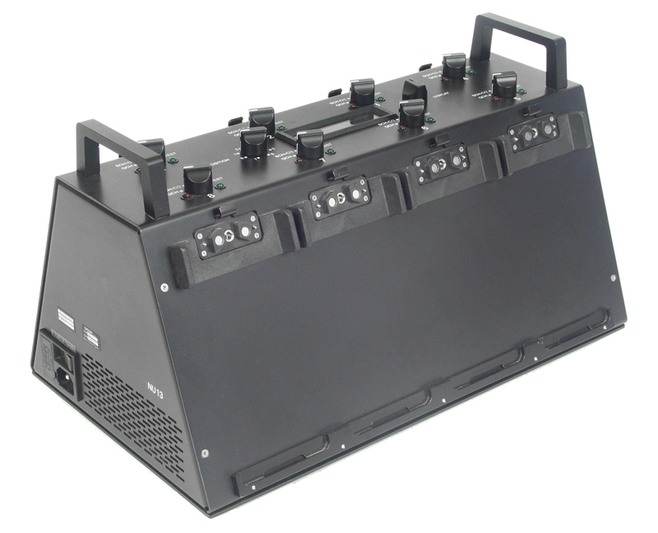

NU13 - Universal charger
The charger features charging, charging with preliminary discharging, the measuring of battery pack capacity and testing of one to eight RF13.1 (NiCd) and the RF13.13 (LiIon) battery packs. Any of the four functions may be independently used in each of the eight locations. These functions are selected by function switch. After the battery pack is connected to the particular location, the selected function gets running.
| Napájecí napětí síťové | (90 až 264) V, 50 Hz |
|---|---|
| Odběr proudu ze sítě | max. 10 A |
| Odběr proudu naprázdno | max. 0,5 A |
| Doba standardního nabíjení | 14 hodin až 15 hodin pro RF13.1 |
| Doba rychlonabíjení | 60 minut pro RF13.1 |
| Doba nabíjení | max. 7 hodin pro RF13.13 |
| Testování zdrojových skříní. | |
| • testovací proud | 2 A |
| Krytí | IP 30 |
| Rozsah teplot zdrojových skříní RF13.1 pro rychlonabíjení | +10 ºC až +43 ºC |
| Rozsah teplot zdrojových skříní RF13.13 pro nabíjení | 0 ºC až +50 ºC |
| Rozměry [š x v x h] | 430 mm x 250 mm x 255 mm |
| Hmotnost | 10 kg |
| Návod k obsluze NU13 | 7024.010.01 |
|---|---|
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
NU13 - Universal charger set
Set consists of NU13 universal charger and accessories. The charger features charging, charging with preliminary discharging, the measuring of battery...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NU13 | Universal charger set | 7024.000.02 |
RF13.1 - Rechargeable battery pack set
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
RF13.13 - Rechargeable battery pack
Power supply for RF13 portable transceiver. It contains a set of LiIon batteries in serial-parallel connection with protective and diagnostic...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.02 | ||
| RF13.13 | Rechargeable battery pack | 7000.100.22 |
