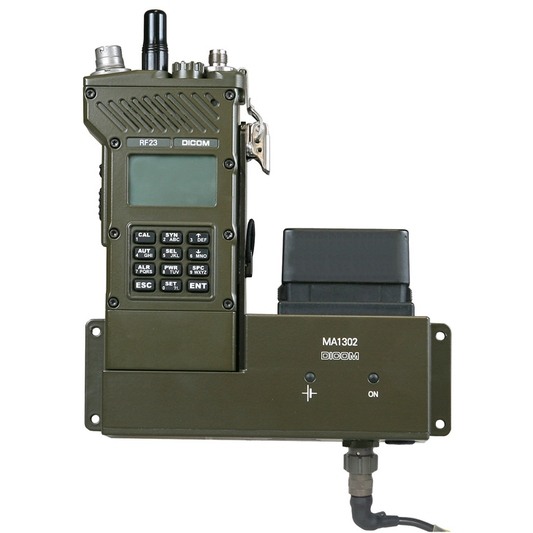

RF23M - Mobile set N/A
| POŽADAVKY NA ANTÉNY PRO MOBILNÍ SOUPRAVU | |
|---|---|
| Kmitočtový rozsah | 25 MHz až 146 MHz, doporučeno 30 MHz až 108 MHz |
| Jmenovitá impedance | 50 Ω |
| PSV | max. 3,5 |
| Výkonové zatížení | min. 10 W |
| POŽADAVKY NA ANTÉNNÍ KABEL | |
| Materiál | RG_58_C/U-01 |
| Délka kabelu | max. 10 m |
| Konektor pro připojení k RF23 | TNC dle MIL-STD–348A |
| Konektor pro připojení k anténě | dle typu konektoru antény |
| POŽADAVKY NA ANTÉNNÍ GPS KABEL | |
| Materiál | RG58, LMR-195-FR-W |
| Délka kabelu | max. 15 m |
| Konektor pro připojení k RF23 | SMA dle MIL-STD–348A |
| Konektor pro připojení k anténě | dle typu konektoru antény |
| POŽADAVKY NA EXTERNÍ ANTÉNU GPS | |
| Pasivní nebo aktivní | |
| Napájecí napětí pro předzesilovač | 3,3 V |
| Návod k obsluze RF23 | 2300.010.42 |
|---|---|
| Krátký návod k obsluze RF23 | 2300.011.42 |
| Návod k obsluze MA1302 | 7018.010.21 |
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
RF23 - EPM handheld transceiver nemá být vidět
Ruční vícepásmová EPM radiostanice se zvýšenou odolností proti radioelektronickému boji je určená pro spojení na taktickém stupni velení u všech druhů vojsk.
- integrovaný přijímač GPS
- audio příslušenství s konektorem U-229/U
MA1302 - Vehicle support
MA1302 vehicle support supplies RF20 transceivers with power and charges battery packs for this transceiver in vehicles with 12 V...
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF23 | EPM handheld transceiver nemá být vidět | 2300.100.40 | ||
| MA1302 | Vehicle support | 7018.100.21 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| Power supply cable | 1050.125.01 | 0209906100700 | 6150160055167 |
LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
NM1302 - Mobile charger set
Set consists of NM1302 mobile charger and accessories. NM1302 charger is designed to charge BP1301 (NiCd) and LP1302 (LiIon) battery...
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
1.1 m long tape antenna
A broadband antenna designed for portable and handheld transceivers equipped with a standard TNC connector. It is used for communication...
Vehicle antenna 2.6 m with GPS antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
PD13 - Long-wire antenna
RF13.8 - Hang-up antenna
This antenna is used for operation of the RF13 transceiver from trenches, forests or from buildings. The antena consits of...
GPA24 - Satellite navigation antenna
Headset
Light-weight headband headset consists of a central housing unit supporting a microphone and earphone, are mounted on flexible boom arms...
RM23 - Handset with control
The handset with control is intended to control RF23 transceiver. Besides the basic functions of radio channel monitoring, transceiver keying and voice modulation, it features channel selection and step volume change.
- U-229/U connector
Handset
Standard type handset for widespread use in tactical communications devices equipped with M55116 type connector. It is designed to control...
PK23 - Fill gun set
The set is designed for preparation of operational data and filling of RF13 and RF20 radio system transceivers (including RF23...
Transceiver bag
Battery pack bag extended
RF cable
Antenna cable 3 m
Antenna cable 10 m
Antenna cable
Data cable (RS232C)
TNC M/BNC F adaptor
High frequency protection 1 GHz 200 V 400 W
High frequency protection 6 GHz 180 V 400 W
CD for modem configuration
ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP20 | Battery pack | 7029.100.11, 7029.100.13 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| NU1302 | Universal charger set N/A | 7027.000.01 | 0299012011670 | 6130160048118 |
| NM1302 | Mobile charger set | 7028.000.01 | 0299012011694 | 6130160048120 |
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| 1.1 m long tape antenna | 2036.100.42 | |||
| Vehicle antenna 2.6 m with GPS antenna | 2036.100.45 | |||
| PD13 | Long-wire antenna | 2036.100.10 | 0064681101577 | 5985160038730 |
| RF13.8 | Hang-up antenna | 2036.100.11 | 0064681101065 | 5985160024749 |
| GPA24 | Satellite navigation antenna | 2042.100.50 | 0064681101250 | 5985160018111 |
| Headset | 2328.100.11, 2328.100.12 | |||
| RM23 | Handset with control | 2313.100.40 | ||
| Handset | 2328.100.01 | |||
| PK23 | Fill gun set | 2320.000.40 | ||
| Transceiver bag | 6000010032 | 0067100045353 | 5820160044342 | |
| Transceiver bag | 6000010038 | |||
| Battery pack bag | 7020.116.01 | 0064725000813 | 5895160015377 | |
| Battery pack bag extended | 6000010039 | |||
| RF cable | 1050.465.01 | |||
| Antenna cable (3 m) | 2011.904.01 | 0064301010443 | 5995160034134 | |
| Antenna cable (10 m) | 2011.904.02 | 0064301010924 | 5995160020406 | |
| Antenna cable 3 m | 1050.430.30 | |||
| Antenna cable 10 m | 1050.430.10 | |||
| Antenna cable | 1050.454.02 | |||
| Data cable (USB) | 1050.285.01 | 0067100044514 | 5995160043005 | |
| Data cable (RS232C) | 1050.285.02 | |||
| TNC M/BNC F adaptor | 4290330401 | |||
| High frequency protection 1 GHz 200 V 400 W | 5605002002 | |||
| High frequency protection 6 GHz 180 V 400 W | 5605002003 | |||
| CD for modem configuration | 2025.500.51 |
