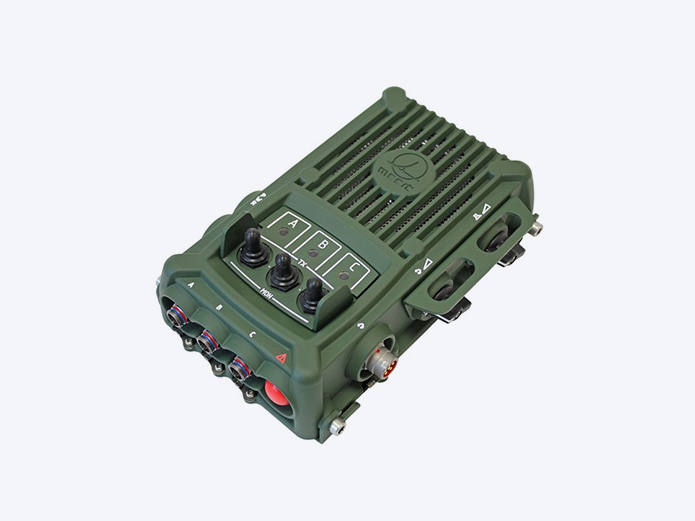

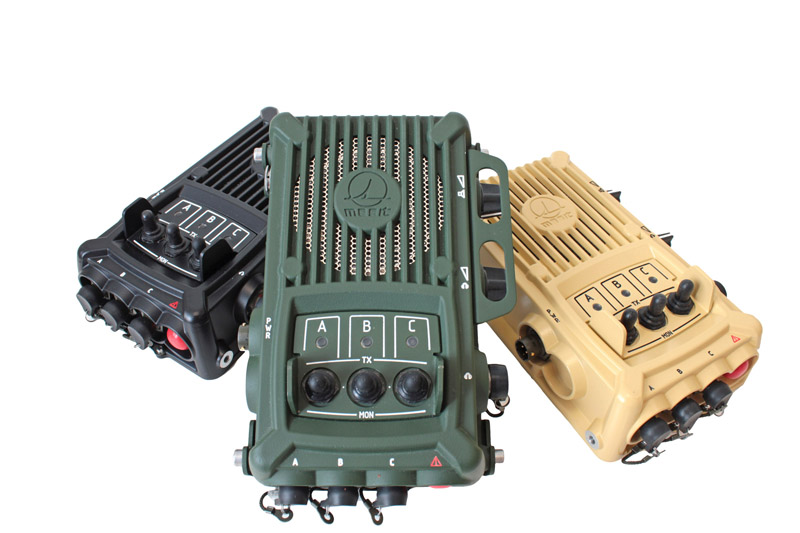

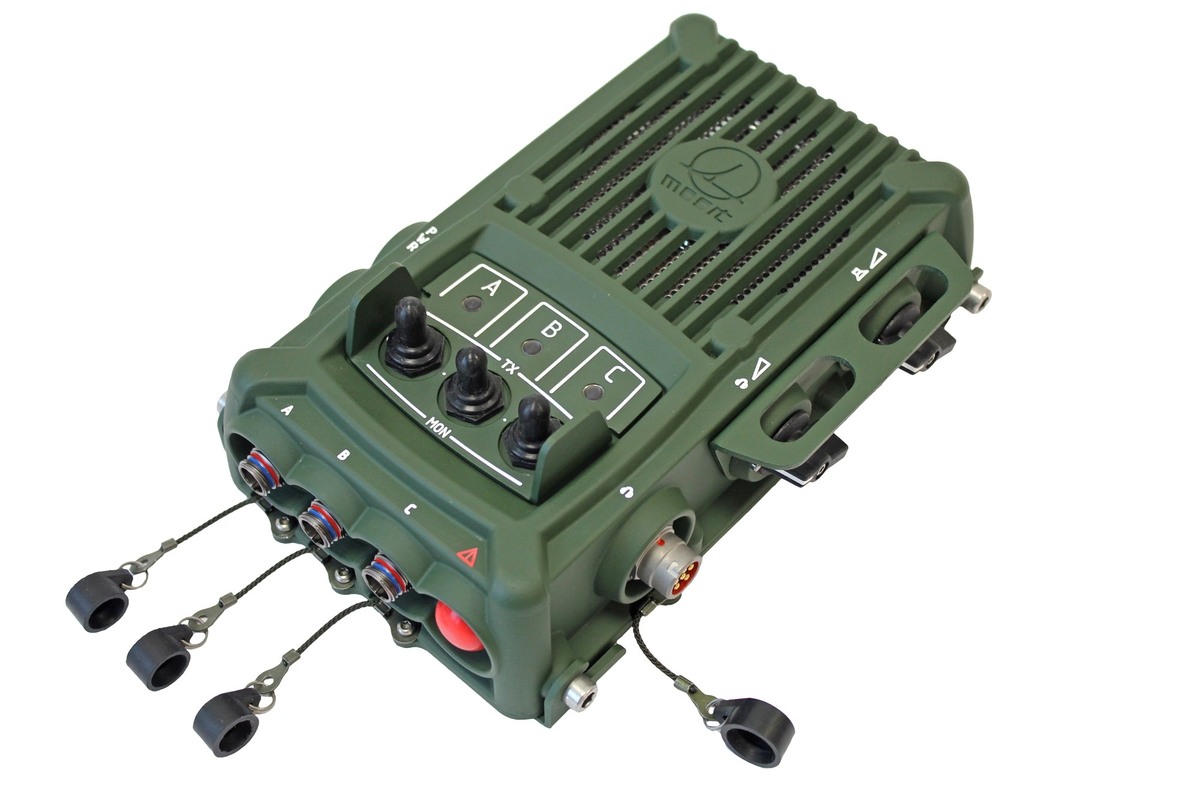

The RM1 radio monitor is designed for installations in military vehicles, shelters and command posts. It allows you to simultaneously monitor the operation of up to 3 radios and transmit on a selected radio if required.
- For crews of tactical and command vehicles
- Easy installation and use
- Built-in speaker with an amplifier
- Easy volume control
- Visual indication of the operational activities of radios
- Interface for the connection of a headset or microphone
- Emergency call function for immediate calls to all radios
- MIL-STD-810E, MIL-STD-461F
Built-in Speaker

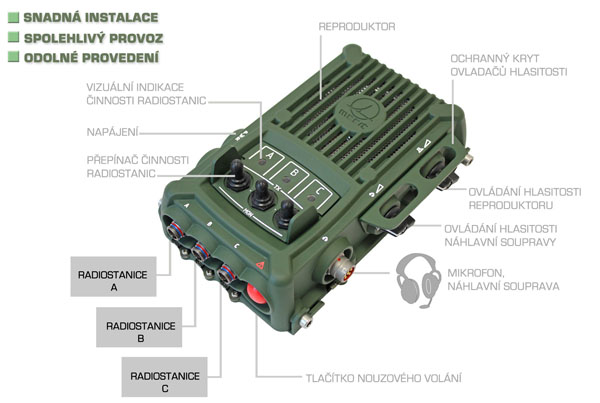

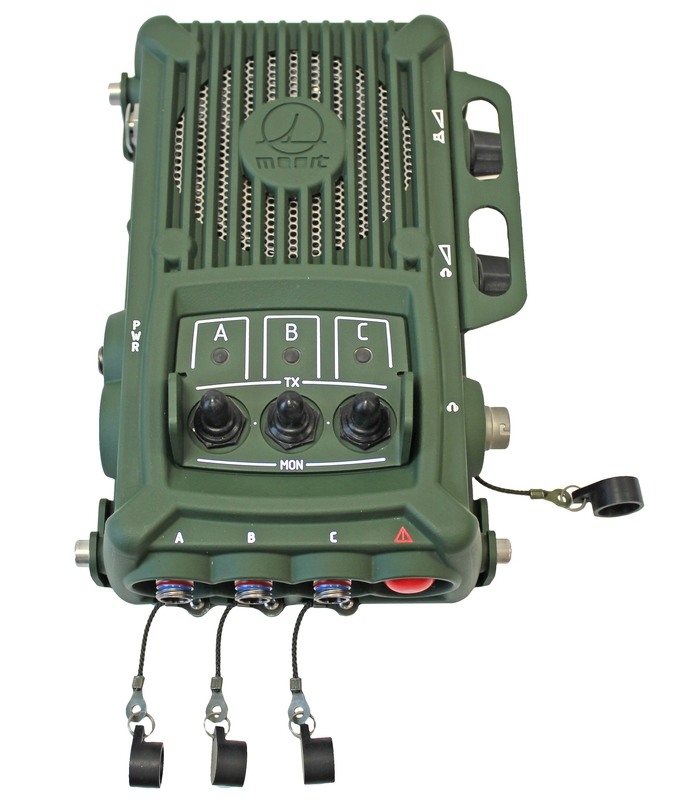

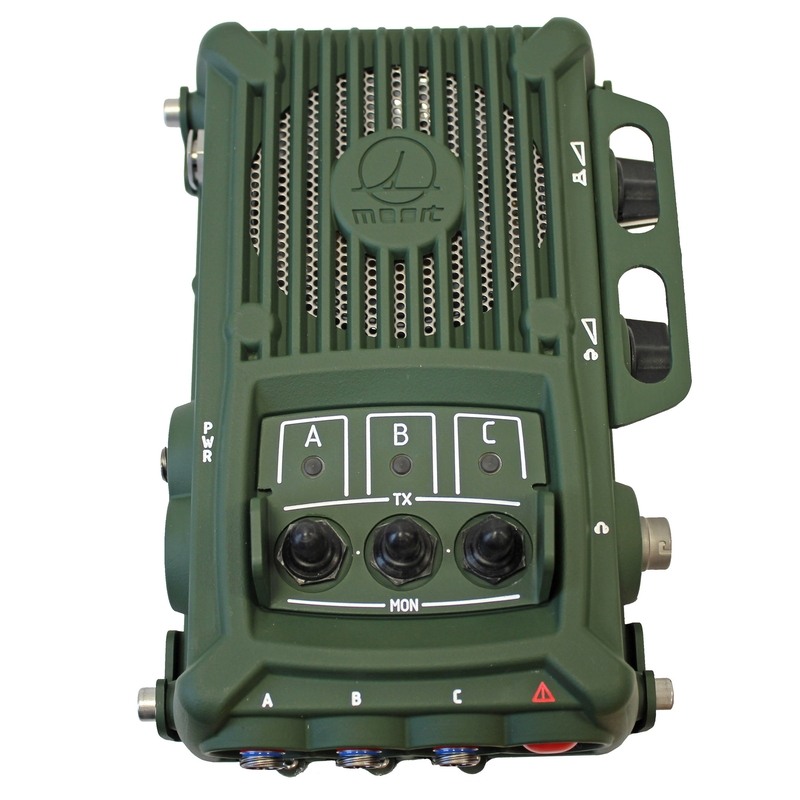

RM1 is a cost-effective solution for vehicles that are not equipped with an intercom. The radio operation is monitored using a built-in loudspeaker (headsets do not have to be connected). The radio operation is indicated by LED indicators. The control is intuitive using toggle switches on the front panel. We can control the volume of both the loudspeaker and headset, which can be connected to RM1 as well. The RM1 is provided with an emergency call button. The crew can therefore immediately transmit an emergency call to all of the connected radios simultaneously.
Durability, robustness and easy installation
RM1 excels with its rugged and robust design. The controls are protected with protective covers for the prevention of accidental incorrect switching or damage of the controls. Installation is easy in any military vehicle. When developing this device, MESIT asd, s.r.o. utilized their long-term experience from the development of vehicle intercoms and radios.
Technical parameters
Supply voltage 11 to 36VDC (others upon request)
Operating temperature -40°C to +60°C
Environment MIL-STD-461G, MIL-STD-810G
Download
- 458_RM1_Radio_monitor_EN.pdf (1.01 MB)
