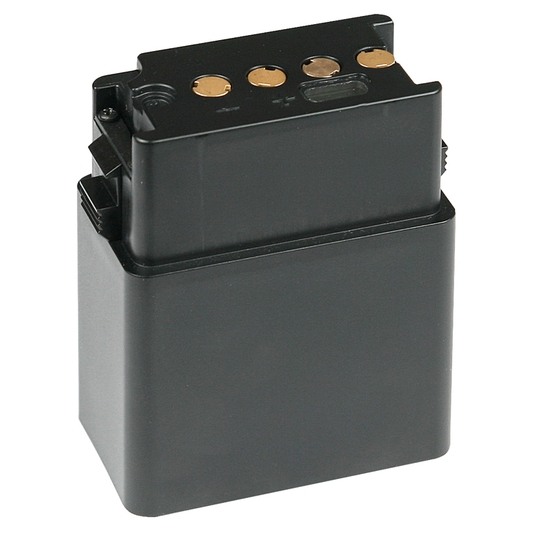

LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
The battery pack version 7029.100.11 contains a converter which ensures minimum battery pack output voltage of 6.5 V under increased cell internal resistance (negative temperature).
| Jmenovité napětí | 7,4 V |
|---|---|
| Jmenovitá kapacita | 6,7 Ah |
| Nabíjení | 5 hodin (z nabíječů NU1302, NM1302) |
| Rozmezí teplot pro nabíjení | 0 ˚C až +43 ˚C |
| Rozsah pracovních teplot | –30 ˚C až +60 ˚C |
| Rozměry | max. 76 mm x 95 mm x 45 mm [š x v x h] |
| Hmotnost | max. 0,45 kg |
Diagnostické obvody umožňují, pomocí komunikace dvoudrátovou sběrnicí mezi zdrojovou skříní a nabíječem, zobrazit výrobní a nabíjecí parametry zdrojové skříně na displeji nabíječe (NU1302).
NM1302 - Mobile charger set
Set consists of NM1302 mobile charger and accessories. NM1302 charger is designed to charge BP1301 (NiCd) and LP1302 (LiIon) battery...
PC20 - Small mains charger set
SL20 - Solar charger
The SL20 solar charger is designed to charge LiIon battery packs with type designations LP1302 and LP20 for RF20 and...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NU1302 | Universal charger set N/A | 7027.000.01 | 0299012011670 | 6130160048118 |
| NM1302 | Mobile charger set | 7028.000.01 | 0299012011694 | 6130160048120 |
| PC20 | Small mains charger set | 7046.000.11 | ||
| SL20 | Solar charger | 7047.100.01 |
