RF2050 - EPM mobile transciever set

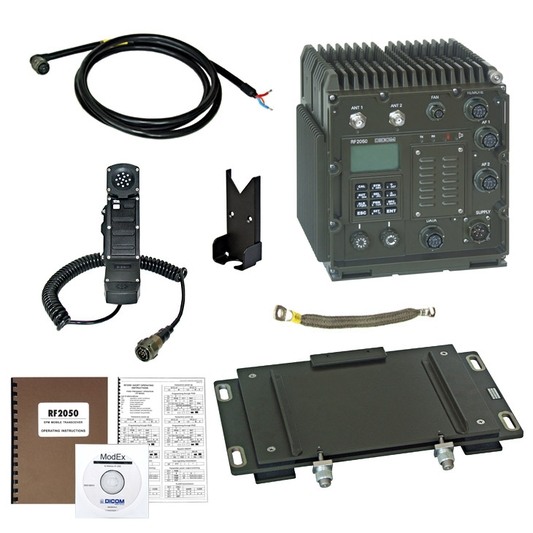

Set consists of RF2050 EPM mobile transceiver (with co-site filter) and accessories. RF2050 mobile multiband transceiver, belonging to the RF20 family of multiband tactical radios with increased resistance to radio-electronic warfare, is designed for installation into any kind of tracked or wheeled vehicles. Small footprint, robust design and outstanding features add to its great utility, especially in modernization of the existing vehicular intallations. RF2050 transceiver is produced in two variants: without co-site filter var. 2310.100.10 and with co-site filter var. 2310.100.11. The built-in modem ensures data communication in tactical IP networks according to MIL-STD-188-220. For more details on RF2050 mobile transceiver and other set components see relevant pages of this website.

PN (RN): 2310.000.11
Návod k obsluze RF13250 2310.010.21
Krátký návod k obsluze RF13250 2310.011.21
Záznamník 6000002011
Technický list 6000002021
Switch display: Catalog / List
Sort by
RF2050 - EPM mobile transceiver

RF2050 - EPM mobile transceiver

PN (RN): 2310.100.11

RF2050 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles.

  • standard range of functionalities typical for mobile transceivers of RF20 system
  • with co-site filter
Mobile set frame

Mobile set frame

PN (RN): 7007.100.14
KČM: 0064570002710
NSN: 5975160055891

The frame is designed for installation of the RF2050 mobile EPM transceiver in all wheeled and tracked vehicles. The transceiver...

RF13.3 - Handset

RF13.3 - Handset

PN (RN): 2022.100.52
KČM: 0064333000731
NSN: 5965160034142

When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...

Power supply cable 3 m

Power supply cable 3 m

PN (RN): 1050.126.02
KČM: 0067100055749
NSN: 5995160055907
Handset holder

Handset holder

PN (RN): 2026.700.01
KČM: 0064662900760
NSN: 5965160034225
The holder is used for installation in a vehicle and in fixed locations. The handset is placed in the holder...
Grounding

Grounding

PN (RN): 1050.993.01
KČM: 0064681901249
NSN: 5995160034143
CD for modem configuration

CD for modem configuration

PN (RN): 2025.500.51

ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...

Type designation Name PN (RN) KCM NSN
RF2050 EPM mobile transceiver 2310.100.11
Mobile set frame 7007.100.14 0064570002710 5975160055891
RF13.3 Handset 2022.100.52 0064333000731 5965160034142
Power supply cable 3 m 1050.126.02 0067100055749 5995160055907
Handset holder 2026.700.01 0064662900760 5965160034225
Grounding 1050.993.01 0064681901249 5995160034143
CD for modem configuration 2025.500.51
