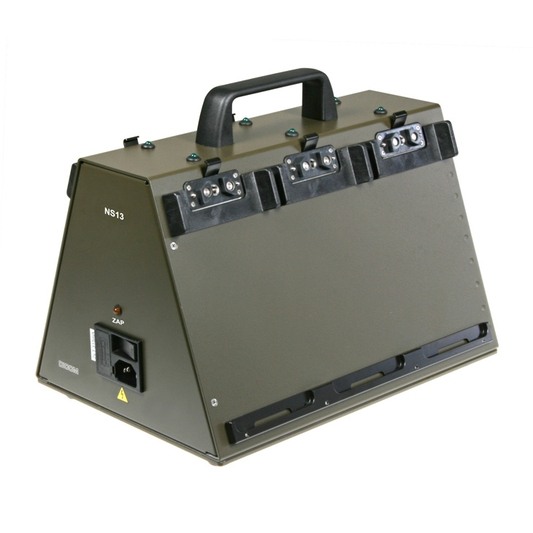

NS13 - Standard battery charger
The charger is used for simultaneous charging of one to six rechargeable battery packs RF13.1 at 0.1 C standard current. Temperature increase of the battery pack above +43 °C causes the standard charging current switch-off and consequently the trickle charge mode is switched on. Charged battery packs are fastened to the charger by means of level closures. The charger can be carried with the charged battery packs.
PN (RN): 7003.100.01
KCM: 0299012010800
NSN: 6130160037710
| Napájecí napětí | síťové 230 V/50 Hz |
|---|---|
| Doba nabíjení | (14 až 16) hodin |
| Nabíjecí proud | 400 mA |
| Konzervační proud | 30 mA |
| Krytí | IP 30 |
| Rozsah prac. teplot | -20 °C až +50 °C |
| Rozměry [š x v x h] | 225 mm x 250 mm x 315 mm |
| Hmotnost | 5,5 kg |
| Návod k obsluze NS13 | 7003.010.01 |
|---|---|
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
NS13 - Standard battery charger set
PN (RN): 7003.000.01
KČM: 0299012010792
NSN: 6130160037709
Set consists of NS13 standard battery charger, mains connection cable and documentation. For basic operation no other components are required...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NS13 | Standard battery charger set | 7003.000.01 | 0299012010792 | 6130160037709 |
RF13.1 - Rechargeable battery pack set
PN (RN): 7000.000.01
KČM: 0064241004672
NSN: 6130160039852
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.01 | 0064241004672 | 6130160039852 |
