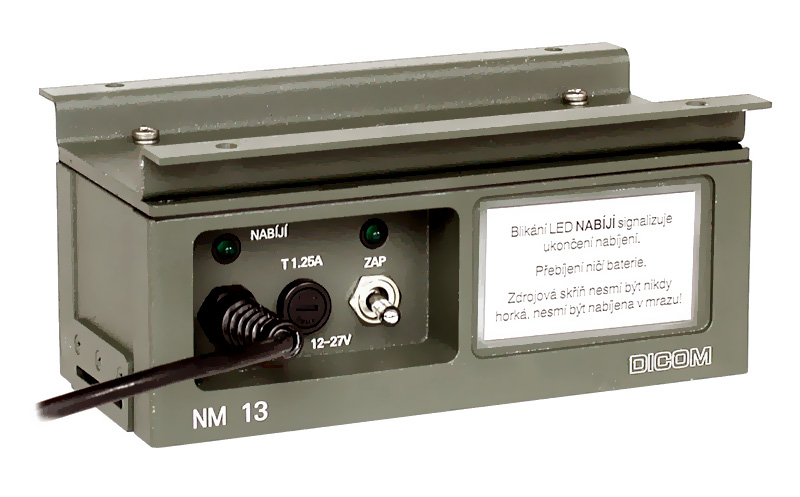

NM13 - Mobile charger
The charger is used for charging of the single battery pack RF13.1 by a constant current. This charger makes possible the charging of the battery pack at mobile sets by means of an on-board mains of 12 V or 24 V. Temperature increase of the battery pack above +43 °C causes the standard charging current switch-off and consequently the trickle charge mode is switched on. The chargers can be fixed to horizontal or vertical surfaces with four M4 screws. They are connected to the on-board mains by means of a power cable with a cigarette lighter adapter, which is included with the charger. The battery pack is fastened to the charger with a lever closure. The charging stops automatically.
| Rozsah napájecích napětí | 10 V až 33 V |
|---|---|
| Nabíjecí proud | 400 mA |
| Doba nabíjení | (14 až 16) hodin |
| Konzervační proud | (30 ± 15) mA |
| Rozsah pracovních teplot | -20 °C až +50 °C |
| Rozsah teplot při nabíjení | -20 °C až +40 °C |
| Rozměry [š x v x h] | 192 mm x 68 mm x 81 mm |
| Hmotnost | max. 1 kg |
| Návod k obsluze NM13 | 7004.010.01 |
|---|---|
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
NM13 - Mobile charger
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NM13 | Mobile charger | 7004.000.01 | 0299012006917 | 6130160022119 |
RF13.1 - Rechargeable battery pack set
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.01 | 0064241004672 | 6130160039852 |
