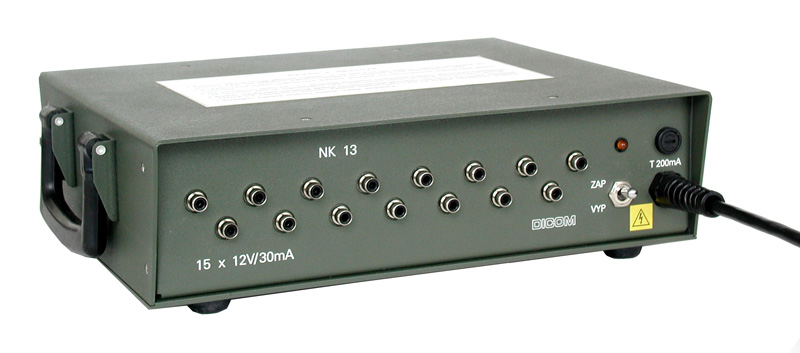

NK13 - Trickle charger
The charger is used for elimination of self-discharging of NiCd battery packs RF13.1 during storage. Charged battery packs are stored close to the trickle charger. They are interconnected with a cable (7002.900.01). One trickle charger can charge up to 30 battery packs at the same time.
PN (RN): 7002.100.01
KCM: 0299012010862
NSN: 6130160037999
| Napájecí napětí | síťové 230 V/50 Hz |
|---|---|
| Doba nabíjení | neomezena |
| Nabíjecí proud | 30 mA |
| Řízení nabíjení | konstantní nabíjecí proud |
| Krytí | IP 30 |
| Rozsah pracovních teplot | -20 °C až +50 °C |
| Rozměry [š x v x h] | 340 mm x 95 mm x 255 mm |
| Hmotnost | 4 kg |
| Návod k obsluze NK13 | 7002.010.01 |
|---|---|
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
NK13 - Trickle charger set
PN (RN): 7002.000.01
KČM: 0068600200031
NSN: 6130160022128
Set consists of NK13 trickle charger and accessories. The charger is used for elimination of self-discharging of NiCd battery packs...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NK13 | Trickle charger set | 7002.000.01 | 0068600200031 | 6130160022128 |
RF13.1 - Rechargeable battery pack set
PN (RN): 7000.000.01
KČM: 0064241004672
NSN: 6130160039852
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.01 | 0064241004672 | 6130160039852 |
