RF20M - Mobile set

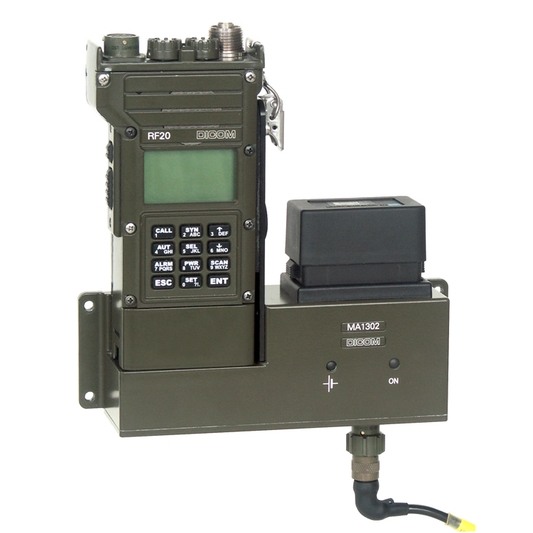

Set consists of RF20 EPM handheld transceiver, MA1302 vehicle support and other accessories. The set is designed to be used in wheeled vehicles and with an external antenna located on the vehicle hood. The mobile set enables power supply from 12 V or 27 V on-board mains. RF20 transceiver with improved resistance to electronic warfare is designated for use at the lowest tactical command levels for all kinds of military units. Depending on the type of selected frequency band, the transceiver is able to communicate with transceivers operating in HF band with frequency modulation of R150 radio system, RF13 and RF20 VHF transceivers, and with airborne transceivers in Aircraft band I. MA1302 vehicle support supplies RF20 transceiver and charges its battery pack. For more details on RF20 transceiver, MA1302 vehicle support and other set components see relevant pages of this website.
| Návod k obsluze RF1302E | 2300.010.11 |
|---|---|
| Krátký návod k obsluze RF1302E | 2300.011.11 |
| Návod k obsluze MA1302 | 7018.010.21 |
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
RF20 - EPM handheld transceiver
RF20 EPM handheld multiband transceiver with improved resistance to electronic warfare for use at the tactical command levels for all kinds of military units.
- standard range of functionalities typical for handheld transceivers of RF20 system
MA1302 - Vehicle support
MA1302 vehicle support supplies #RF20# transceivers with power and charges battery packs for this transceiver in vehicles with 12 V...
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
RM1301 - Handheld microphone/speaker
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF20 | EPM handheld transceiver | 2300.100.10 | ||
| MA1302 | Vehicle support | 7018.100.21 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| Power supply cable | 1050.125.01 | 0209906100700 | 6150160055167 | |
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| RM1301 | Handheld microphone/speaker | 2009.100.01 | 0064332001036 | 5965160024751 |
LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
NU1302 - Universal charger set
Set consists of NU1302 universal charger and accessories. The charger is designed to charge and discharge up to eight BP1301...
NM1302 - Mobile charger set
Set consists of NM1302 mobile charger and accessories. NM1302 charger is designed to charge BP1301 (NiCd) and LP1302 (LiIon) battery...
PC20 - Small mains charger set
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
AS1301 - Short tape antenna 0.5 m
Short-distance communication between RF20 or RF1301 transceivers. This antenna can also be used with the RF13 transceiver. The antenna proper...
AL1301 - Long tape antenna 1.1 m
This is a basic type antenna for RF20 or RF1301 transceivers. This antenna can also be used with the RF13...
PD13 - Long-wire antenna
RF13.8 - Hang-up antenna
This antenna is used for operation of the RF13 transceiver from trenches, forests or from buildings. The antena consits of...
AL13 - Long tape antenna 1.5 m
This is a basic type antenna for RF13 transceiver (VHF). It can be easily used instead of 1.5 m...
RM20 - Handset with control
The handset with control is intended to control RF20 transceiver. Besides the basic functions of radio channel monitoring, transceiver keying and voice modulation, it features channel selection and step volume change.
- 10 pin connector DICOM
RF13.3 - Handset
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Handset holder
PK20 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
Transceiver bag
Battery pack bag extended
RF cable
Data cable (RS232C)
High frequency protection 1 GHz 200 V 400 W
CD for modem configuration
ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...
RF headsets
The RF product line headsets are designed for RF20 and RF13 radio system transceivers.
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP20 | Battery pack | 7029.100.11, 7029.100.13 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| NU1302 | Universal charger set | 7027.000.02 | ||
| NM1302 | Mobile charger set | 7028.000.02 | ||
| PC20 | Small mains charger set | 7046.000.12 | ||
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| AS1301 | Short tape antenna 0.5 m | 2038.100.01 | 0064681101058 | 5985160025492 |
| AL1301 | Long tape antenna 1.1 m | 2037.100.01 | 0064681101236 | 5985160015375 |
| PD13 | Long-wire antenna | 2036.100.10 | 0064681101577 | 5985160038730 |
| RF13.8 | Hang-up antenna | 2036.100.11 | 0064681101065 | 5985160024749 |
| AL13 | Long tape antenna 1.5 m | 2039.100.01 | 0064685905834 | 5985160033179 |
| RM20 | Handset with control | 2313.100.01 | ||
| RF13.3 | Handset | 2022.100.52 | 0064333000731 | 5965160034142 |
| Handset holder | 2026.700.01 | 0064662900760 | 5965160034225 | |
| PK20 | Fill gun set | 2320.000.02 | ||
| Transceiver bag | 6000010032 | 0067100045353 | 5820160044342 | |
| Transceiver bag | 6000010038 | |||
| Battery pack bag | 7020.116.01 | 0064725000813 | 5895160015377 | |
| Battery pack bag extended | 6000010039 | |||
| Antenna cable (3 m) | 2011.904.01 | 0064301010443 | 5995160034134 | |
| Antenna cable (10 m) | 2011.904.02 | 0064301010924 | 5995160020406 | |
| RF cable | 1050.405.02 | |||
| Data cable (USB) | 1050.285.01 | 0067100044514 | 5995160043005 | |
| Data cable (RS232C) | 1050.285.02 | |||
| High frequency protection 1 GHz 200 V 400 W | 5605002002 | |||
| CD for modem configuration | 2025.500.51 | |||
| RF headsets |
