RF1350 - Mobile set

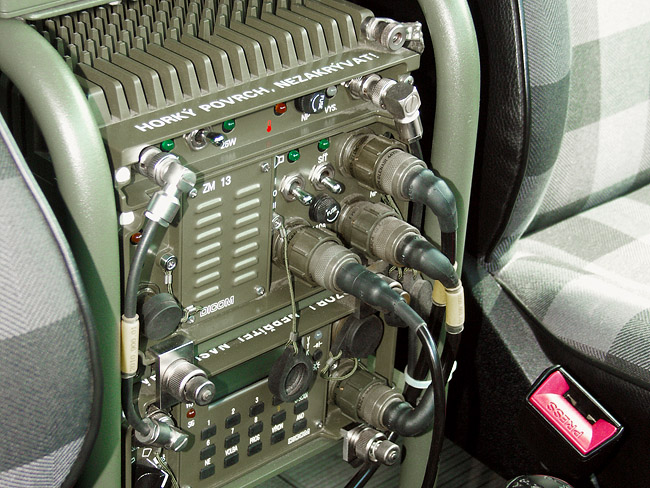

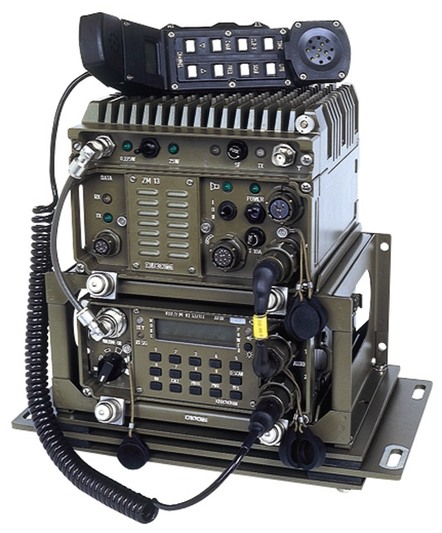

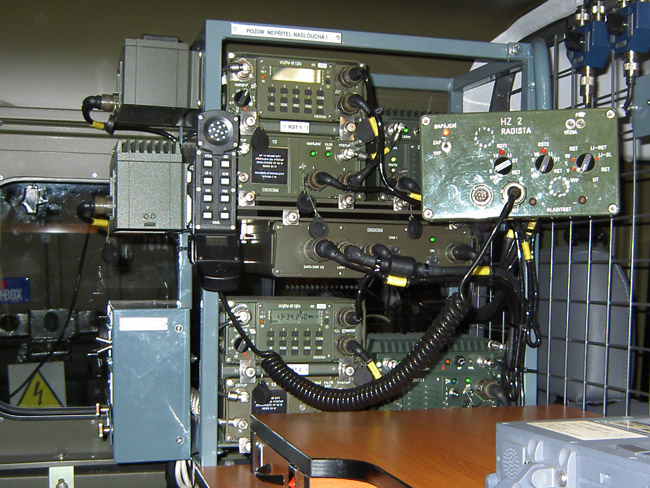

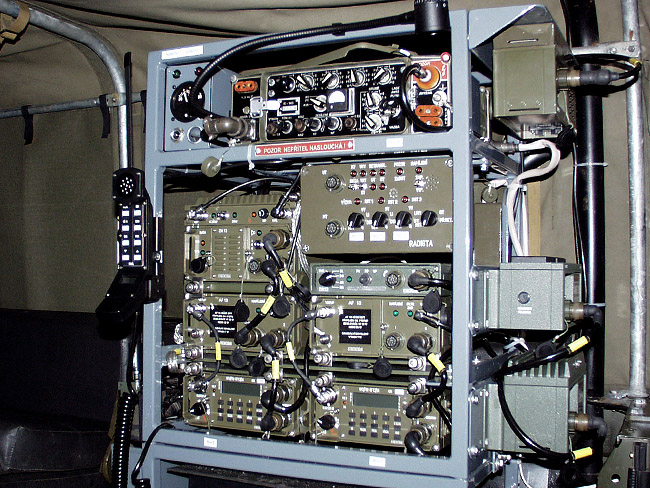

This mobile set with maximal output power of 50 W can be installed in all wheeled and tracked vehicles. The RF13 transceiver and ZV13.1 amplifier are located on top of each other in a springcushion frame. If the mobile set is designed for installation in wheeled vehicles without artillery or mortar weaponry, or for fixed posts, you may use the lighter, non-cushioned frame 7007.100.01 instead of springcushion frame 7007.100.10. The set can be controlled from one location.
| Kmitočtový rozsah | 30,000 MHz až 87,975 MHz |
|---|---|
| Vstupní impedance | 50 Ω |
| Výstupní impedance | 50 Ω |
| Kanálová rozteč | 25 kHz |
| Počet pracovních kanálů | 2320 |
| Volba kanálů | z klávesnice radiostanice nebo mikrotelefonu |
| Druh provozu | simplexní nebo semiduplexní telefonie nebo přenos dat rychlostí 16 kbit/s |
| Utajení hovoru | přes vnitřní maskovač hovoru nebo vnitřní utajovač EU13.1 |
| Modulace | kmitočtová, max. zdvih 5,6 kHz |
| Výstupní vf výkon soupravy nastavitelný ve třech stupních: | |
| snížený | 0,2 W |
| jmenovitý | 5 W |
| zvýšený | 50 W |
| Citlivost příjímače | 0,5 µV při 12 dB SINAD |
| Pásmo efektivně přenášených kmitočtů | úzkopásmové audio F3 300 Hz až 3400 Hz |
| širokopásmové audio 150 Hz až 9000 Hz | |
| Rozhraní pro připojení počítače | RS232C |
| Přenosová rychlost dat v rádiovém kanálu | max. 16 kbit/s |
| Modulace pro přenos dat | GMSK |
| Úroveň modulačního signálu pro zdvih 4 kHz | |
| v provozu F3 | 100 mV |
| v provozu DATA | 430 mV ± 50 mV |
| Výstupní výkon vnitřního nf zesilovače | 1 W na reproduktoru s impedancí 6 Ω |
| Kmitočtový rozsah nf zesilovače | 300 Hz až 3000 Hz v pásmu 6 dB |
| Napájecí napětí | 27 V |
| Mezní napájecí napětí | 18 V až 33 V |
| Stupeň odrušení | podle ČSN EN 55022 |
| Odběr proudu v režimech | |
| příjem | 0,5 A/27 V |
| vysílání 5 W | 1,3 A/27 V |
| vysílání 50 W | 8 A/27 V |
| Doba nepřetržitého provozu v +50 °C | min. 30 min. |
| Rozsah pracovních teplot | -30 °C až +60 °C |
| Rozměry soupravy s rámem (7007.100.20) | 428 mm x 224 mm x 165 mm |
| Hmotnost soupravy s rámem (7007.100.20) | max. 15 kg |
| Návod k obsluze RF13 | 2000.010.01 |
|---|---|
| Krátký návod k obsluze RF13 | 2000.011.01 |
| Návod k obsluze RF1350/RF1325 | 2011.010.01 |
| Krátký návod k obsluze RF1350/RF1325 | 2011.011.01 |
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
RF1350 - Mobile set
This mobile set with maximal adjustable output power of 50 W can be installed in all wheeled and tracked vehicles...
RF1350 - Mobile set
This mobile set with maximal adjustable output power of 50 W can be installed in all wheeled and tracked vehicles...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF1350 | Mobile set | 2011.041.71 | ||
| RF1350 | Mobile set | 2011.041.72 |
RF13 - Transceiver
The RF13 transceiver with built-in digital scrambler is a portable VHF transceiver, which is used for tactical communication. It is...
ZV13.1 - Power amplifier 50 W (Net)
RF power amplifier for RF13 transceivers. ZV13.1 amplifier includes a high speed data modem with GMSK modulation and 16...
Frame
The frame is used for spring-mounted installation with four M8 screws into a vehicle. The RF13 transceiver and the ZM13...
CD for modem configuration
ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13 | Transceiver | 2000.100.04 | 5820160015663 | |
| ZV13.1 | Power amplifier 50 W (Net) | 2011.100.53 | ||
| Frame | 7007.100.10 | 0064681901232 | 5975160030959 | |
| AF cable | 2010.901.01 | 0064301010481 | 5995160030958 | |
| RF cable | 2010.900.01 | 0064301010498 | 5995160024752 | |
| Grounding | 1050.993.01 | 0064681901249 | 5995160034143 | |
| Grounding | 1050.993.04 | 0064301010892 | 5995160034139 | |
| Connector nut | 2000.475.01 | 0064661601312 | 5935160038320 | |
| CD for modem configuration | 2025.500.51 |
NM13 - Mobile charger
Set consists of NM13 mobile charger and documentation. For basic operation no other components are required. The charger is used...
RM13 - Mobile quick charger set
Set consists of RM13 mobile quick charger and accessories. It is used for quick charging of the RF13.1 rechargeable...
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
Groundplane antenna
The antenna is intended for use on stationary posts. The antenna can be installed on all types of masts supplied...
Discon antenna
Telescopic winch driven mast 10 m
Antenna mast
It is intended for use in field conditions to install all types of GROUNDPLANE antennas supplied by DICOM. Individual sections...
RF13.2 - Handset with control
The handset can be connected to any of the two audio connectors on the RF13 transceiver or to any transceiver...
RF13.3 - Handset
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Handset holder
PK20 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
Data cable (RS232C)
RF headsets
The RF product line headsets are designed for RF20 and RF13 radio system transceivers.
RF13.1 - Rechargeable battery pack
Battery pack for portable RF13 VHF transceiver. It contains a compact quick-charge NiCd batteries pack. The box contains an electronic...
AL13 - Long tape antenna 1.5 m
This is a basic type antenna for RF13 transceiver (VHF). It can be easily used instead of 1.5 m...
PD13 - Long-wire antenna
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NM13 | Mobile charger | 7004.000.02 | 0299012006917 | 6130160022119 |
| RM13 | Mobile quick charger set | 7014.000.02 | 0299012000414 | 6130160018774 |
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| Groundplane antenna | 2036.100.38 | |||
| Discon antenna | 2036.100.68 | 0064681101609 | 5985160039132 | |
| Telescopic winch driven mast 10 m | 2036.100.70 | 0064681500217 | 5985160039124 | |
| Antenna mast | 2036.100.39 | |||
| RF13.2 | Handset with control | 2022.100.02 | 0064333000661 | 5965160034636 |
| RF13.3 | Handset | 2022.100.52 | 0064333000731 | 5965160034142 |
| Handset holder | 2026.700.01 | 0064662900760 | 5965160034225 | |
| PK20 | Fill gun set | 2320.000.02 | ||
| UC13 | Attenuator 10 dB | 2029.100.01 | 0064231005494 | 5985160017697 |
| Power supply cable 1.5 m | 2010.902.02 | 0064301010931 | 5995160024844 | |
| Power supply cable 3 m | 2010.902.01 | 0064301010467 | 5995160020047 | |
| Antenna cable (3 m) | 2011.904.01 | 0064301010443 | 5995160034134 | |
| Antenna cable (10 m) | 2011.904.02 | 0064301010924 | 5995160020406 | |
| Data cable | 1050.271.01 | 0064301017336 | 5995160038514 | |
| Data cable (RS232C) | 1050.350.01 | |||
| RF headsets | ||||
| RF13.1 | Rechargeable battery pack | 7000.100.02 | ||
| AL13 | Long tape antenna 1.5 m | 2039.100.01 | 0064685905834 | 5985160033179 |
| PD13 | Long-wire antenna | 2036.100.10 | 0064681101577 | 5985160038730 |
| Light fabric cover | 2000.118.01 | 0064722003213 | 5820160034145 | |
| Carrying straps | 2000.117.01 | 0064701000990 | 5820160034144 |
