MA1302 - Vehicle support

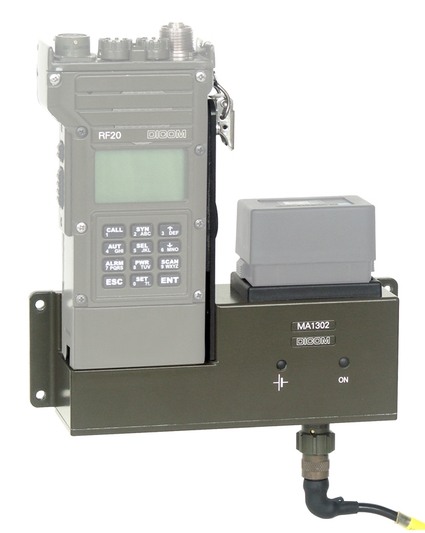

MA1302 vehicle support supplies #RF20# transceivers with power and charges battery packs for this transceiver in vehicles with 12 V or 27 V board mains (compatible with MIL-STD-1275B). When removed with the battery pack from the holder, the transceiver becomes portable and capable of normal operation.
| Napájecí napětí z palubní sítě vozidla | 12 V nebo 27 V |
|---|---|
| Rozsah napájecího napětí | 10 V až 33 V |
| Odběr proudu z palubní sítě vozidla | max. 4 A |
| Odběr proudu v pohotovostním režimu | max. 3 mA |
| Výstupní napětí | max. 9 V |
| Napájecí proud do radiostanice | min. 3,5 A |
| Nabíjecí proud BP1301 | 150 mA |
| Nabíjecí proud LP1302, LP20 | max. 1,8 A |
| Nabíjecí napětí pro BP1301 | max. 9 V |
| Nabíjecí napětí pro LP1302 | max. 8,4 V |
| Rozsah teploty zdrojové skříně pro nabíjení | 0 °C až 43 °C |
| Rozsah pracovních teplot | -40 °C až +70 °C |
| Rozměry [š x v x h] | 215 mm x 200 mm x 60 mm |
| Hmotnost | max. 1 kg |
| Návod k obsluze MA1302 | 7018.010.21 |
|---|---|
| Záznamník | 6000002011 |
| Technický list | 6000002021 |
MA1302 - Vehicle support set
Set consists of MA1302 and accessories. MA1302 vehicle support supplies RF20 transceivers with power and charges battery packs for this...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| MA1302 | Vehicle support set | 7018.000.26 |
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP1302 | Battery pack | 7029.100.02 | ||
| LP20 | Battery pack | 7029.100.11, 7029.100.13 |
