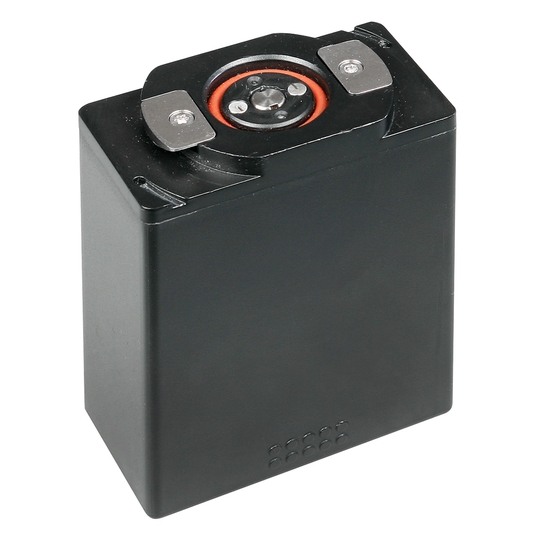

LP40 - Battery
LP40 battery is offered in two versions. Optimal battery type choice for a given application depends on the required radio operating time, dimensions and weight.
Battery design:
• LP40L battery with a capacity of 82 Wh (7400.100.01)
• LP40L battery with a capacity of 96 Wh (7400.100.03) - not suitable for low temperature conditions
• LP40S battery with a capacity of 41 Wh (7400.100.02)
• LP40S battery with a capacity of 48 Wh (7400.100.04) - not suitable for low temperature conditions
• kompaktní mechanická konstrukce s kontaktním systémem zabezpečujícím snadné a spolehlivé mechanické spojení s radiostanicí nebo nabíječem,
• kontaktní systém s komunikačním rozhraním pro přenos základních údajů do radiostanice (aktuální stav nabití) a údajů pro řízení nabíjecího režimu,
• LCD zobrazovač s indikátorem stavu nabití formou bargrafu,
• sekundární pár kontaktů pro dobíjení baterie v dobíjecím stojánku za provozu radiostanice.
SC40 - Stationary charger
Designed to charge up to 8 LP40 batteries in both versions. The charger is installed in a watertight plastic case...
PC40 - Simple charger
Designed to charge one LP40 battery in both versions. The charger is designed as a network adapter with a cable...
VC40 - Vehicle charger
Designed to charge up to two LP40 batteries in both versions. Waterproof and compact charger design ensures high mechanical strength...
SL40 - Solar charger
The SL40 solar charger is designed to charge LiIon battery packs with type designations LP40S and LP40L for RF40 transceivers...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| SC40 | Stationary charger | 7410.100.01 | ||
| PC40 | Simple charger | 7411.100.01 | ||
| VC40 | Vehicle charger | 7412.100.01 | ||
| SL40 | Solar charger | 7047.100.40 |
