For temperature ranges –60°C to +200°C

Resistance temperature sensors are designed for monitoring the temperatures of fluids, air or other gases.

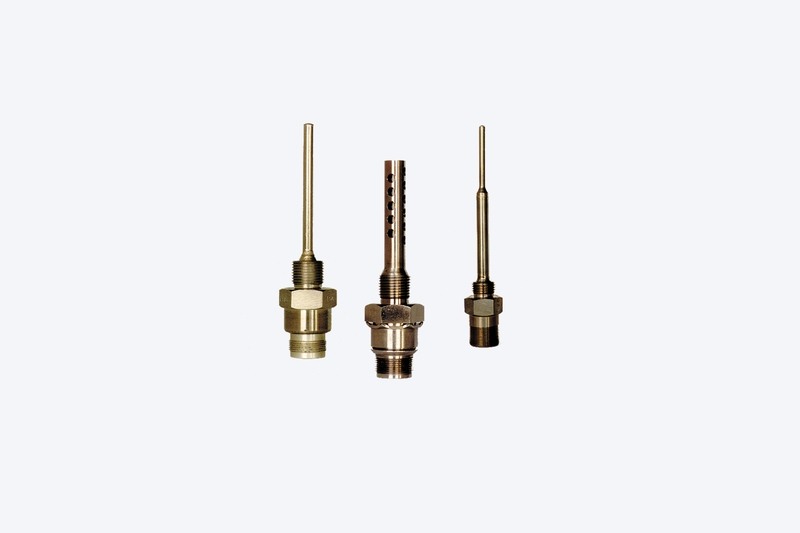

The sensing element is a platinum Pt 100 thermosensor with temperature dependent resistance values, according to the standard ČSN 25 8306. The sensor is built into a protective housing from corrosion-proof steel.  The housing is hexagonal in shape and comes with a fastening thread for attaching the sensor to the object and has a head with a fork for electrically connecting the sensor.  Sensor terminals pass through the WK 46 248 fork.

The complete product comes with:

  • resistance temperature sensor
  • ring (12´18 or 16´20) ČSN 02 9312.2
  • cable socket

Designation: TO-02, TO-03, TO-03.1, TO-05, TO-05.01

Temperature measuring range

  • TO-02, TO-03, TO-03.1 -60 °C to +200 °C
  • TO-05, TO-05.01 -60 °C to +150 °C

Resistance of insulation of electrical transmitter parts must be

  • In a normal environment 100 MΩ
  • At a raised temperature of approx. +125 °C min. 10 MΩ
  • At a raised temperature of approx. +50 °C ± 2 °C and relative humidity (90 to 98) % 50 kΩ

Specific dielectric strength of insulation  Must be 500 V

Time response

  • in turbulent water 1,5 s
  • in calm air 60 s
  • in air flowing at (5 m.s-1) 25 s

Nominal sensor length

  • TO-02 Options
    • 001   30 mm
    • 002   40 mm
    • 003   50 mm
    • 004   60 mm
  • TO-03   50 mm
  • TO-03.1 Options
    • 001   30 mm
    • 002   40 mm
    • 003   50 mm
    • 004   60 mm
  • TO-05, TO-05.01 112 mm

Max. weight

  • TO-02 - 40 g
  • TO-03, TO-03.1 - 45 g
  • TO-05, TO-05.01 - 75 g

Resistance of sensor heads to heat: -50°C to 125°C

Protection      IP 54 according to ČSN EN 60529
