DICOM®RF13 radio system

The system is based on the RF13 portable transceiver and the derived RF1350 mobile sets. It offers voice or data radio communication at a fixed frequency in the VHF band.

RF13 VHF Transceiver (en) 728.21 KB

Key features of the DICOM®RF13 system

Durability, reliability, simplicity

Thousands of units have been manufactured. Outstanding reliability and durability proven by successful deployment in many combat operations.

Communication method

Voice and data communication at a fixed frequency in the range of 30 MHz to 88 MHz at the tactical command level according to STANAG 4204.

Data transfers

Data transfers at 16 kbit/s.

Rebroadcasting

Communication in rugged terrain or increased range in the VHF band is provided by a specialized rebroadcast station - AR13.1.

Featured designs

RF13 portable transceiver - manpack with power up to 5 W. RF1350 mobile transceiver - power up to 50 W.

Modular system

Solutions tailored to specific customer requirements. Sets are formed by linking individual elements of the RF13 system.

Secure communication

Communication via built-in encryption unit.

Components of the DICOM®RF13 system

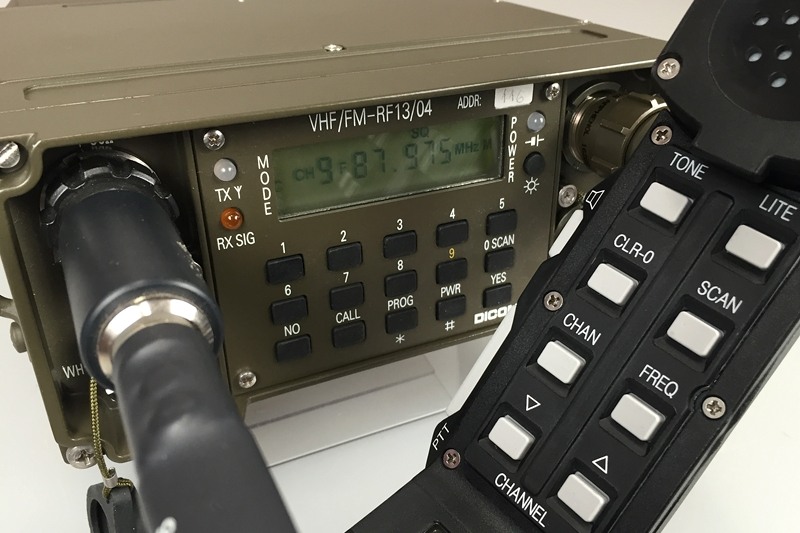

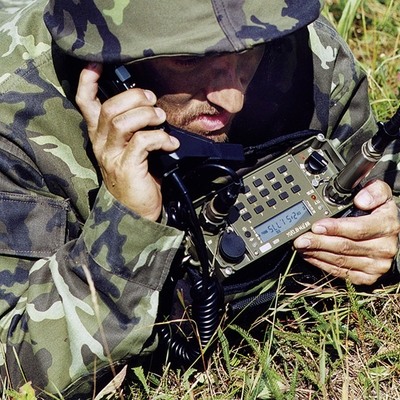

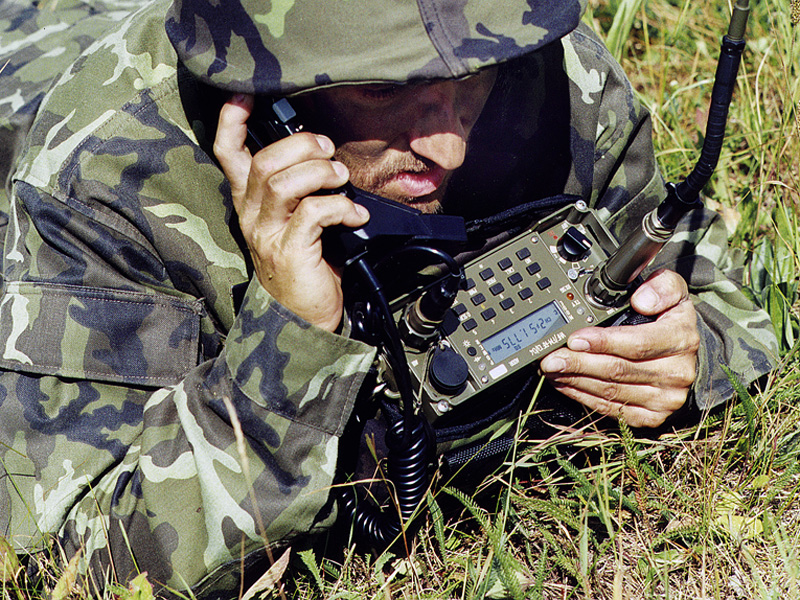

DICOM®RF13 portable transceiver

Reliable and durable design, easy operation – transceiver for tactical command communication.

more…

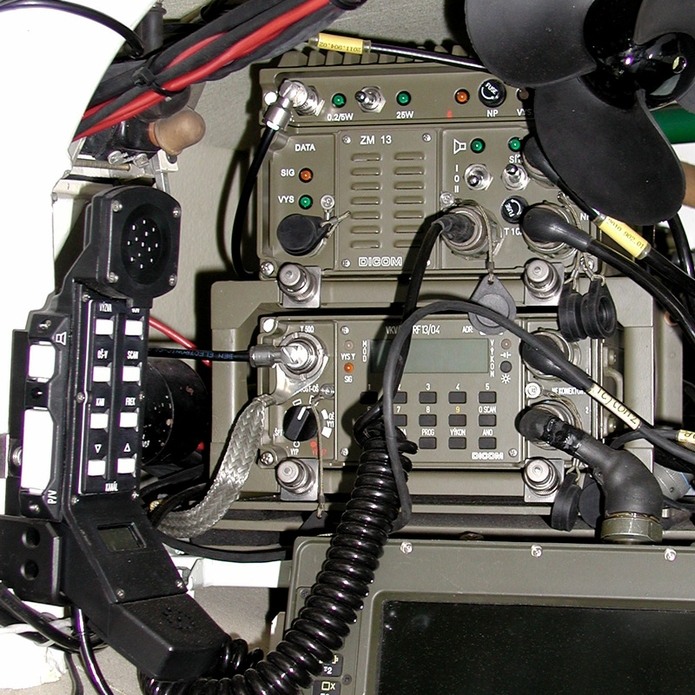

DICOM®RF1350 mobile sets

Variable combinations of RF13 transceiver, ZV13.1 50W amplifier and other RF13 system components for installations in tracked and wheeled vehicles or permanent sites.

more…

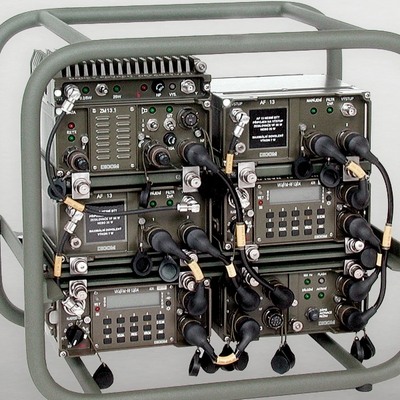

AR13.1 rebroadcast station

Automatic rebroadcasting of signals from RF13 system VHF transceivers throughout the frequency range in all modes of operation (voice, flash, data).

more…

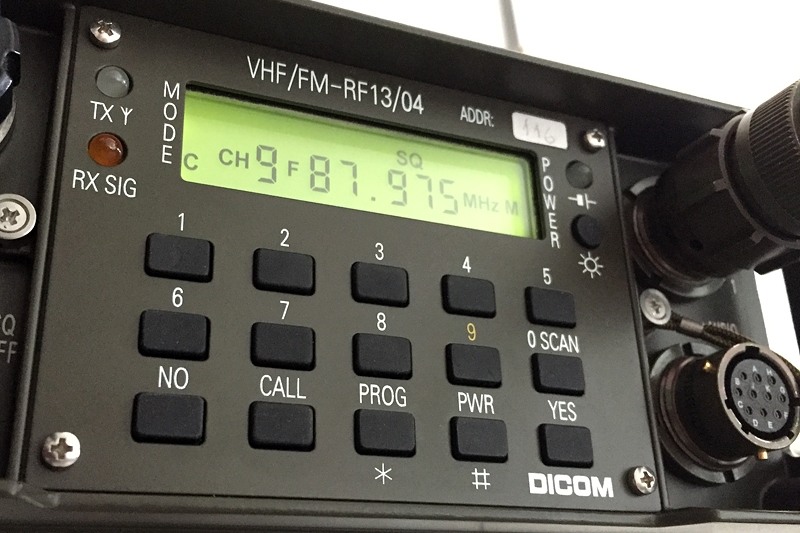

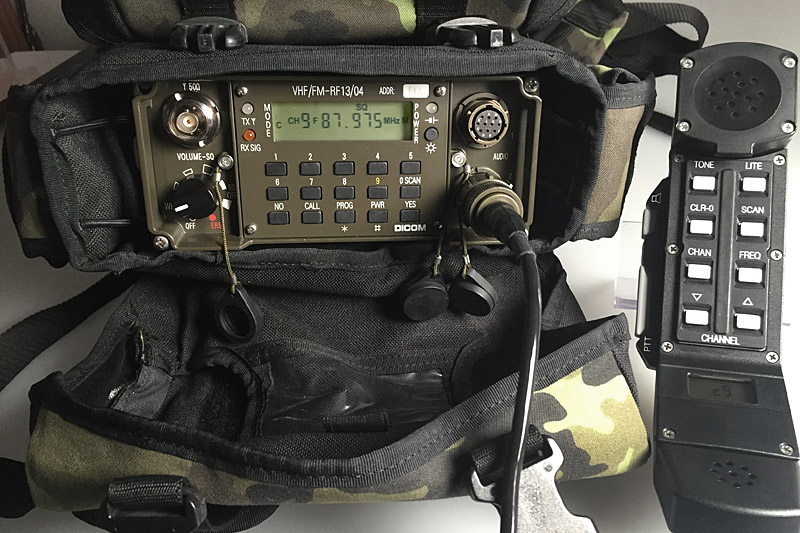

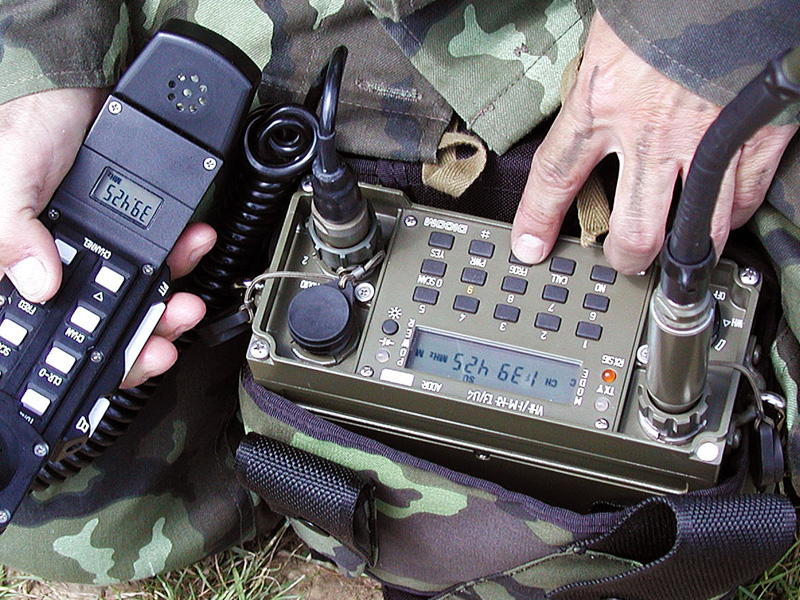

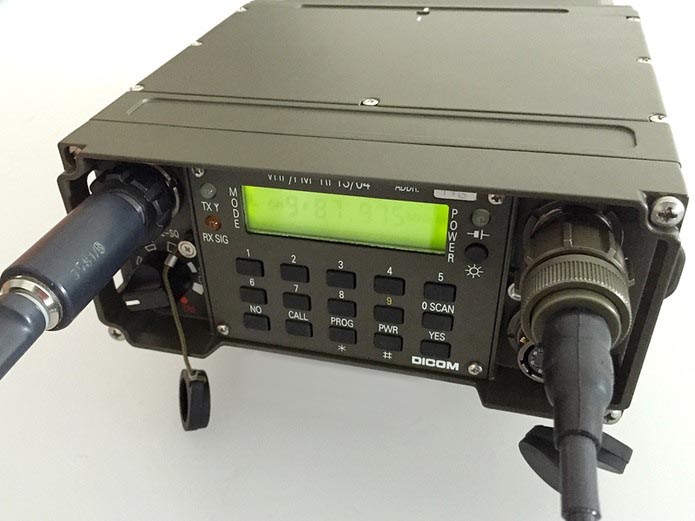

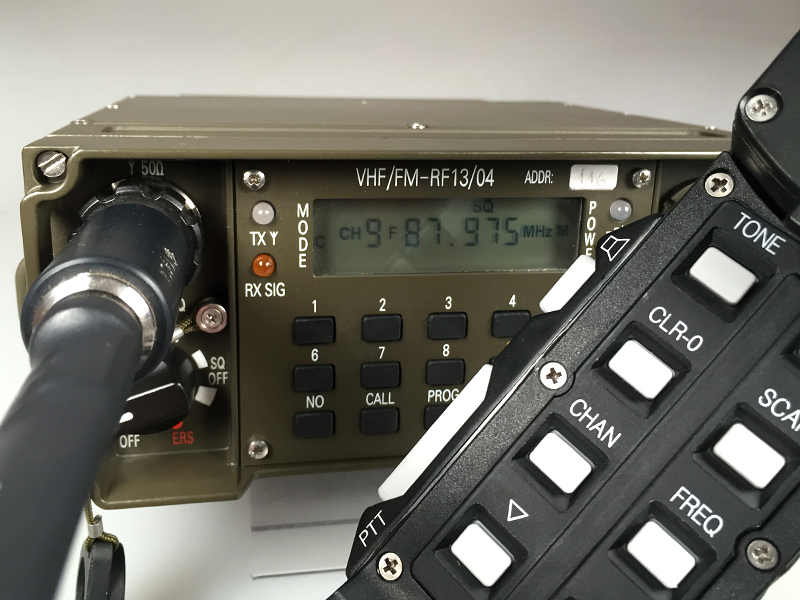

DICOM®RF13 transceiver

Transceiver designed for VHF band with the maximum output power of 5 W enables transmission of voice communication at a fixed frequency with frequency modulation.

Basic RF13 specifications:

30 MHz to 88 MHz frequency range,
0.2 W/5 W output power,
2320 channels, 9 presets,
whisper operation,
SCANNING, FLASH, selective communication,
semi-duplex operation,
built-in encryption unit.

more...

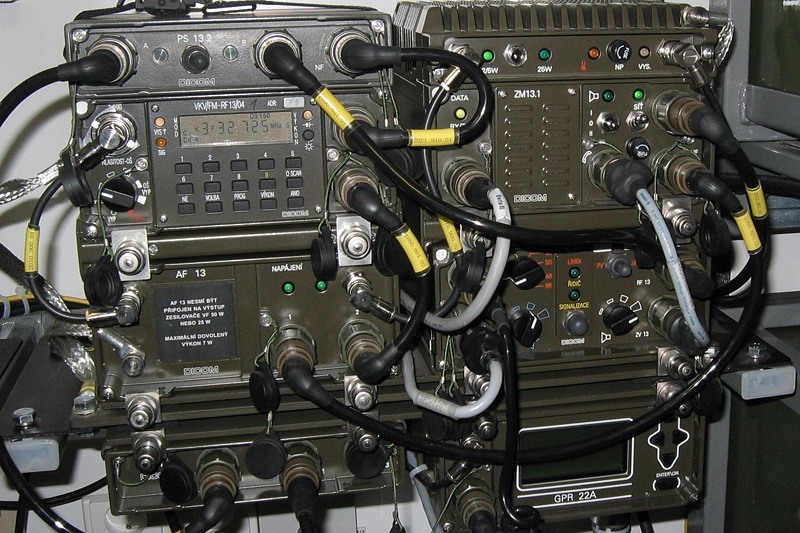

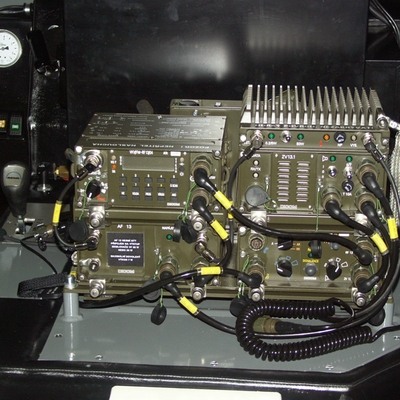

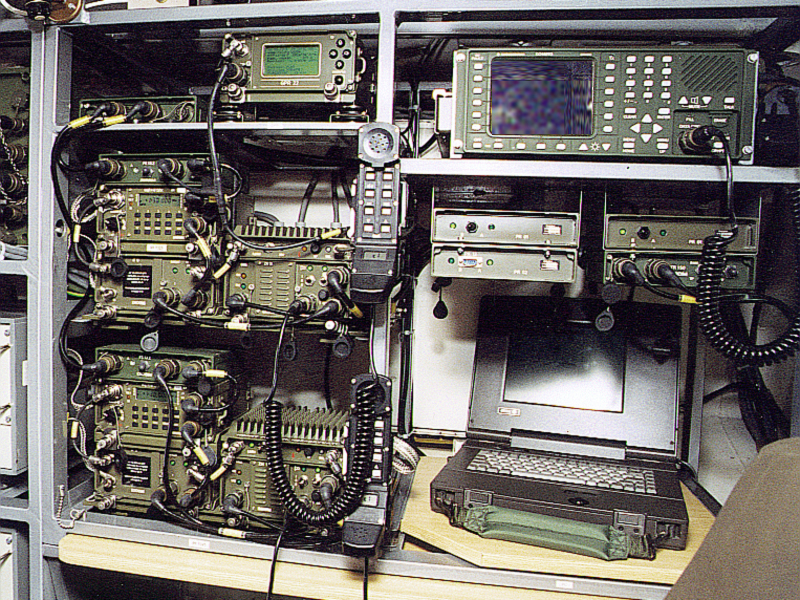

DICOM®RF1350 mobile sets

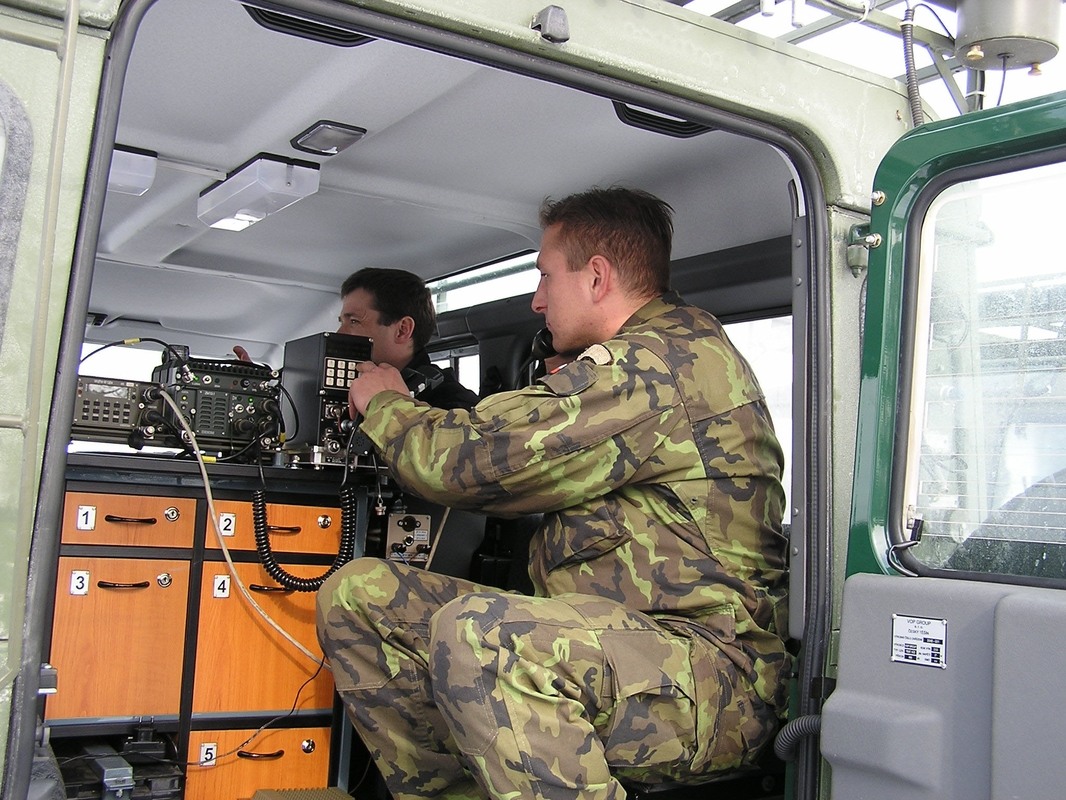

Mobile sets with an output RF power max. 50 W are designed for installation in all tracked and wheeled vehicles. RF13 transceivers, ZV13.1 amplifier and other elements (e.g. co-site filter) are interconnected and located in a proper frame.

Basic RF1350 specifications:

30 MHz to 88 MHz frequency range,
0.2 W/5 W/50 W output power,
27 V supply voltage,
2320 channels, 9 presets,
whisper operation,
SCANNING, FLASH, selective communication,
semi-duplex operation,
built-in encryption unit,
integrated modem,
loud signal monitoring.

more...

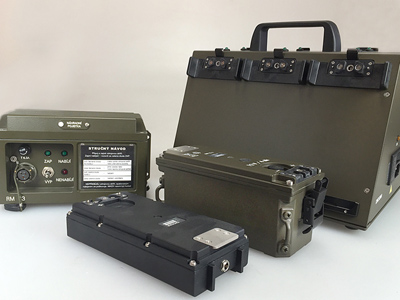

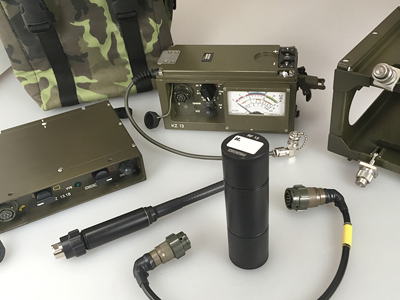

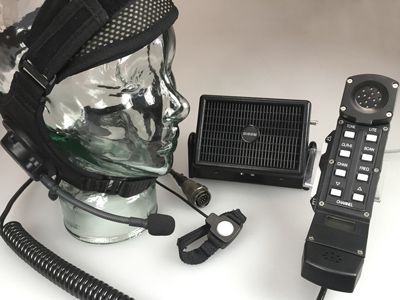

Accessories

RF13 transceiver and mobile sets operation requires specialized accessories. Long time operation is achieved with the help of LiIon and NiCd battery packs with a wide variety of suitable chargers. The practical range is significantly affected by portable and mobile antennas in use. A number of headsets, handsets and accessories are available.
