ZB13 - Battery pack tester set
Set consists of ZB13 battery pack tester and accessories. The battery pack tester is used for quick testing of RF13.1 battery packs. It slides easily on the tested pack and is turned on by lightly pressing the right side of ZB13. The device indicates the condition of the battery pack thermistor and the no-load voltage of the battery. After pressing the TEST button, the load voltage of the battery is established. The tester can also be used as a voltmeter with 15 V range. For more details on ZB13 tester and other set components see relevant pages of this website.
PN (RN): 7009.000.02
KCM: 0064241004689
NSN: 6625160043818
| ZB13 operating instructions | 7009.010.02 |
|---|

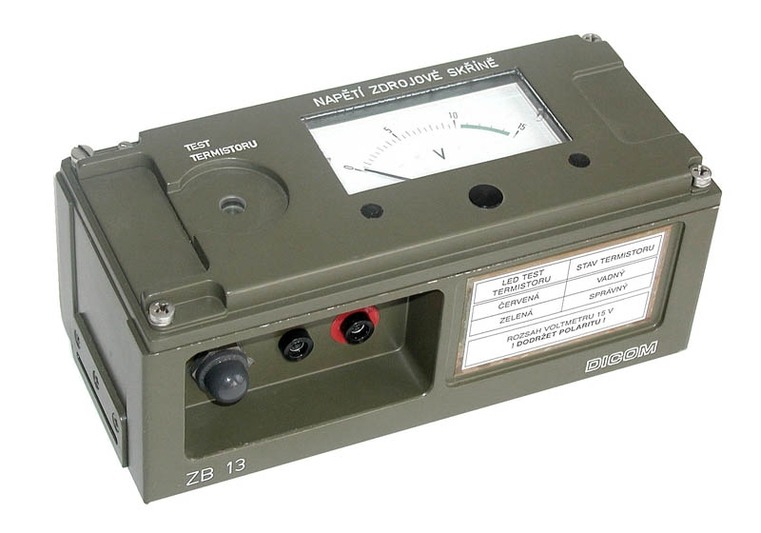

ZB13 - Battery pack tester
PN (RN): 7009.100.02
KČM: 0064241004362
NSN: 6625160043817
The battery pack tester is used for quick testing of RF13.1 battery packs. It slides easily on the tested...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| ZB13 | Battery pack tester | 7009.100.02 | 0064241004362 | 6625160043817 |
| Probe (blue) | 5510080001 | 0062014252475 | ||
| Probe (red) | 5510080002 | 0062014252451 | ||
| Bag | 6000010023 | 0064725000938 | 5895160038888 |
