RF2350 - EPM mobile transceiver set

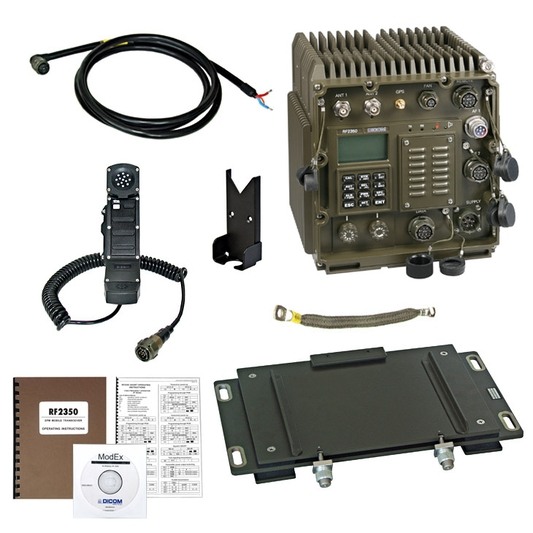

Set consists of RF2350 EPM mobile transceiver (without co-site filter) and accessories.

RF2350 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles and base stations. It is fully compatible with #RF20#, #RF23# and #RF2050# in simplex and semi-duplex frequency hopping channel. Depending on the selected frequency band, the transceiver communicates with older RF13 radio system transceivers and with other transceivers complying with STANAG 4204. The transceiver secures data communication in fixed frequency channels according to MIL-STD-188-220 standard (NET modem). Two types of modem can be used for data transmission in frequency hopping channels - P2P and NET. RF2350 transceiver includes a navigation receiver displaying navigation data on a display and transmitting the GPS data via frequency hopping radio channel using G-track service. The transceiver features one U-229/U audio frequency connector (complying with MIL-DTL-55116 standard) to connect standard headsets. Various acoustic devices such as SONETRONICS, CJ COMPONENT PRODUCTS, POWER TIME etc. can be connected to the connector.

For more details on RF2350 mobile transceiver and other set components see relevant pages of this website.

PN (RN): 2310.000.40
RF2350 operating instructions 2310.010.42
RF2350 short operating instructions 2310.011.42
Switch display: Catalog / List
Sort by
RF2350 - N/A

RF2350 - N/A

PN (RN): 2310.100.40

RF2350 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles and base stations.

Mobile set frame

Mobile set frame

PN (RN): 7007.100.14
KČM: 0064570002710
NSN: 5975160055891

The frame is designed for installation of the RF2050 mobile EPM transceiver in all wheeled and tracked vehicles. The transceiver...

RF13.3 - Handset

RF13.3 - Handset

PN (RN): 2022.100.51
KČM: 0064333000731
NSN: 5965160034142
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Handset holder

Handset holder

PN (RN): 2026.700.01
KČM: 0064662900760
NSN: 5965160034225
The holder is used for installation in a vehicle and in fixed locations. The handset is placed in the holder...
Power supply cable 3 m

Power supply cable 3 m

PN (RN): 1050.126.02
KČM: 0067100055749
NSN: 5995160055907
Grounding

Grounding

PN (RN): 1050.993.01
KČM: 0064681901249
NSN: 5995160034143
CD for modem configuration

CD for modem configuration

PN (RN): 2025.500.51

ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...

Type designation Name PN (RN) KCM NSN
RF2350 N/A 2310.100.40
Mobile set frame 7007.100.14 0064570002710 5975160055891
RF13.3 Handset 2022.100.51 0064333000731 5965160034142
Handset holder 2026.700.01 0064662900760 5965160034225
Power supply cable 3 m 1050.126.02 0067100055749 5995160055907
Grounding 1050.993.01 0064681901249 5995160034143
CD for modem configuration 2025.500.51
