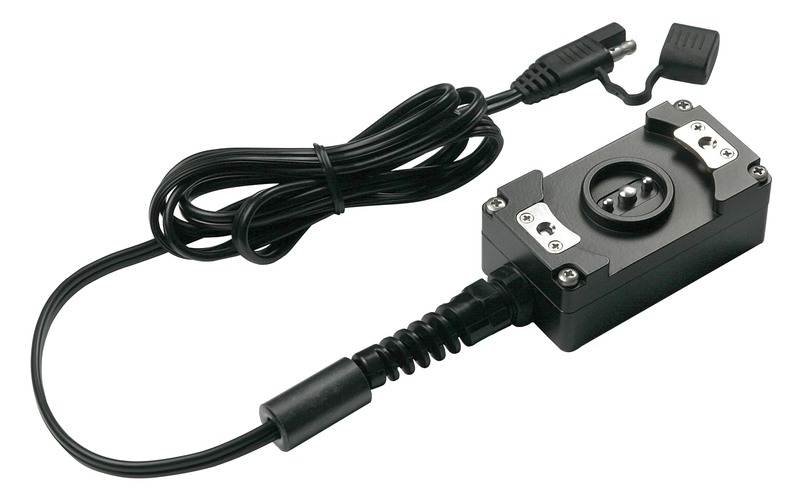

SL40 - Solar charger
The SL40 solar charger is designed to charge LiIon battery packs with type designations LP40S and LP40L for RF40 transceivers by solar radiation.
The charger design is waterproof. The charger is equipped with a battery pack connector and a cable with a solar panel connector. Both connectors are moisture resistant.
The solar charger consists of two basic parts – the solar panel and the SL40 charger.

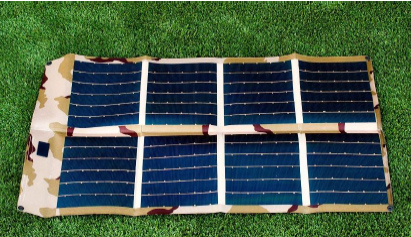

Two types of solar panels can be used to power supply the SL40:
• 30 W with expanded panel size 699 x 635 mm,
max. current 1.4 A
• 50 W with expanded panel size 1067 x 635 mm,
max. current 2.75 A
PN (RN): 7047.100.40
| Supply voltage range | 22 V to 33 V DC |
|---|---|
| Power consumption | max. 50 W |
| Weight (without panel) | 250 g |
| The charger complies with | MIL-STD-810G and MIL-STD-461F standards |
LP40 - Battery
PN (RN): 7400.100.01, 7400.100.02, 7400.100.03, 7400.100.04
LP40 battery is offered in two versions. Optimal battery type choice for a given application depends on the required radio...
