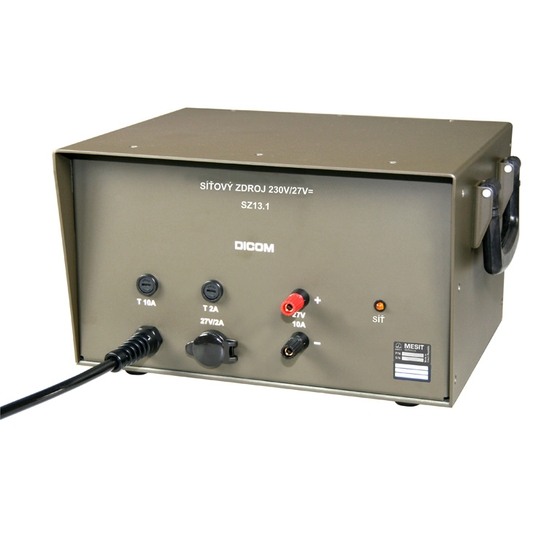

SZ13.1 - Power supply
The SZ13.1 power supply supplies power to the RF1325 or RF1350 transceiver or any other device with nominal power supply voltage of 27 V and consumption not exceeding 2 A (NM13 mobile set charger for instance). It can also be used for other devices with nominal voltage of 27 V and up to 10 A load.
PN (RN): 7011.100.01
KCM: 0299012010817
NSN: 6130160037713
| Power supply voltage range | mains 230 V /50 Hz +10 %/-15 % |
|---|---|
| Current consumption from mains | |
| • at 10 A load | max. 2 A |
| • at no load | max. 0.7 A |
| Nominal output voltage | 27 V |
| Limit output current | through connecting cable 10 A, through AUTO - JACK connector 2 A |
| Limit voltage at no load | 32 V |
| Minimal voltage at maximal output current | 18 V |
| Output voltage ripple | at 5 A load max. 20 mV, at 10 A load max. 200 mV |
| Protection provided by enclosure | IP 30 |
| Operating temperature range | -20 °C to +50 °C |
| Storage temperature range | -30 °C to +60 °C |
| Dimensions | W 304 mm x H 251 mm x D 170 mm |
| Weight | max. 10.5 kg |
| SZ13.1 operating instructions | 7011.010.02 |
|---|
SZ13.1 - Power supply set
PN (RN): 7011.000.01
KČM: 0299012007073
NSN: 6130160024534
Set consists of SZ13.1 power supply and documentation. For basic operation no other components are required. The SZ13.1...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| SZ13.1 | Power supply set | 7011.000.01 | 0299012007073 | 6130160024534 |
