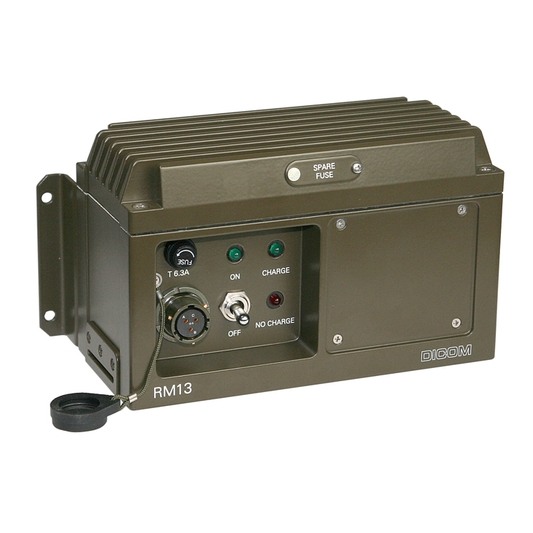

RM13 - Mobile quick charger
Quick charging of the RF13.1 rechargeable battery pack in vehicles. Its mechanic and climatic resistance makes it possible to use the charger in all types of vehicles with the board mains 27 V, including the armed vehicles with artillery. Bolt the quick charger to the vehicle using four M5 bolts. Connect to the vehicle board mains using the power supply cable. Fasten the charged battery pack to the charger using the lever lock.
PN (RN): 7014.100.02
KCM: 0299012010879
NSN: 6130160038000
| DC power supply | nominal - 27 V |
|---|---|
| minimum - 18 V | |
| maximum - 33 V | |
| Current consumption with 27 V | max. 6.3 A |
| Charging time | 60 minutes |
| Charging current | 0.2 A to 6 A, controlled by processor according to the charging characteristic |
| Charging control | according to the voltage drop, battery temperature max. 45 °C and time 60 minutes |
| Operating temperature range | -20 °C to +50 °C |
| Charging temperature range | +10 °C to +40 °C |
| Dimensions | W 212 mm x H 114 mm x D 105 mm |
| Weight | max. 2.1 kg |
| RM13 operating instructions | 7014.010.02 |
|---|

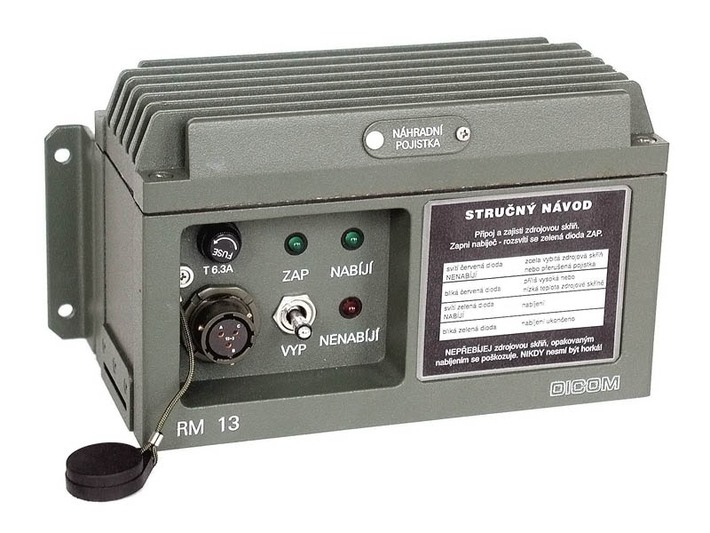

RM13 - Mobile quick charger set
PN (RN): 7014.000.02
KČM: 0299012000414
NSN: 6130160018774
Set consists of RM13 mobile quick charger and accessories. It is used for quick charging of the RF13.1 rechargeable...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RM13 | Mobile quick charger set | 7014.000.02 | 0299012000414 | 6130160018774 |
RF13.1 - Rechargeable battery pack set
PN (RN): 7000.000.02
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.02 |
