DICOM®RF13 radio system
The system based on the RF13 portable transceiver and the derived mobile sets RF1350 offers fixed frequency radio voice or data communication in VHF band. The RF13 portable transceiver is designed for radio voice or data communication on tactical level in all military branches. It features voice communication via built-in encryption unit, sending of short encrypted messages, selective communication, selectable output power 5 W/0,2 W, up to 9 channel presets, automatic preset scanning and control of most function from a handset. RF1350 mobile sets are assembled from mutually connected RF13 system components. Suitable for vehicle installations or fixed posts and in situations where additional features are not provided by RF13 set, namely substantially increased range, are required. Power output is 50 W. Actual components are specified by the user. All operation features of the RF13 base transceiver can be used during operation.
RF13 - Transceiver

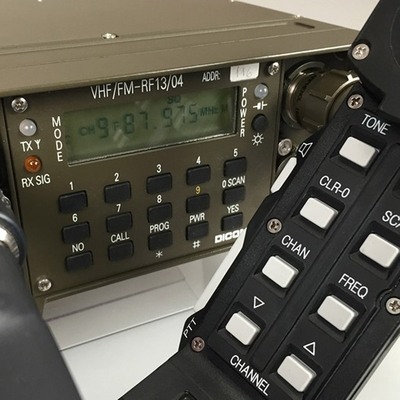

The RF13 transceiver is a portable VHF transceiver, which is used for tactical communication. It is carried and operated by...
RF13 - Transceiver
The RF13 transceiver with built-in digital scrambler is a portable VHF transceiver, which is used for tactical communication. It is...
AR13.1 - Automatic rebroadcast station
The AR13.1 automatic rebroadcast station, in stationary or mobile assemblies, is designed to automatically rebroadcast signals, increasing operating range...
RF1350 - Mobile set
This mobile set with maximal adjustable output power of 50 W can be installed in all wheeled and tracked vehicles...
RF1350 - Mobile set
This mobile set with maximal adjustable output power of 50 W can be installed in all wheeled and tracked vehicles...
RF1305 - Mobile set for patrol vehicles
Set consists of RF13 transceiver, DM13 mobile extension and accessories. The set is intended for quick installment in vehicles, particularly...
RF1350 - Mobile set
This mobile set with maximal output power of 50 W can be installed in all wheeled and tracked vehicles. The...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13 | Transceiver | 2000.100.03 | ||
| RF13 | Transceiver | 2000.100.04 | 5820160015663 | |
| AR13.1 | Automatic rebroadcast station | 2018.100.62 | ||
| RF1350 | Mobile set | 2011.041.71 | ||
| RF1350 | Mobile set | 2011.041.72 | ||
| RF1305 | Mobile set for patrol vehicles | 7005.000.02 | ||
| RF1350 | Mobile set | 2011.041.61 |
