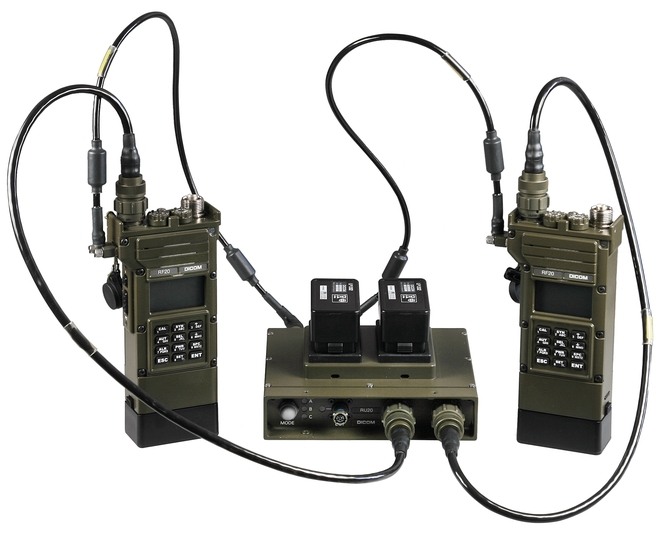

AR20P - Personal rebroadcast set
The AR20P personal rebroadcast set is a device allowing automatic rebroadcasting in fixed frequency operation modes of transceivers complying with the requirements of the STANAG 4204 standard and of transceivers communicating in frequency hopping modes using HW20 modulation, i.e. RF23, RF20, RF2050.
• portable rebroadcast station
• suitable for difficult, rugged terrain
• extends communication range of RF20 system handheld transceivers up to 20 km (designed especially for observers)
• automatic rebroadcasting of operation at fixed frequencies (STANAG 4204) as well as all RF20 system transceivers operation at fixed frequencies across the 30 MHz to 88 MHz band.
• automatic rebroadcasting of RF20 system frequency hopping operations
• all necessary equipment in two bags
To increase operation time LP20 battery packs are available.
| Frequency range | 30 MHz to 88 MHz |
|---|---|
| Transmitter power | 5 W |
| Sensitivity | min. 113 dBm |
| RU20 operating time (from LP1302) | 50 hours (except RF20) |
| Dimensions | |
| – bag with components | 295 mm x 300 mm x 350 mm |
| – antenna mast bag | 1400 mm x 200 mm x 200 mm |
| Weight | |
| – bag with components | max. 10.5 kg |
| – antenna mast bag | max. 8.9 kg |
| Operating temperature range | -40 °C to +70 °C |
| Mechanical and climatic resistance | MIL-STD-810E |
| RU20 operating instructions | 2315.010.12 |
|---|---|
| RF20 operating instructions | 2300.010.12 |
| RF20 short operating instructions | 2300.011.12 |
RF20 - EPM handheld transceiver
RF20 EPM handheld multiband transceiver with improved resistance to electronic warfare for use at the tactical command levels for all kinds of military units.
- standard range of functionalities typical for handheld transceivers of RF20 system
RU20 - Rebroadcast unit
The rebroadcast unit is part of the AR20P portable rebroadcast station that mutually links all transceivers in the automatic rebroadcast...
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
Data cable
Data cable
AF cable
AD-52 - Wire antenna
The antenna AD-52 is a wideband wire directional antenna intended for use with handheld or manpack radio units in VHF...
RF13.8 - Hang-up antenna
This antenna is used for operation of the RF13 transceiver from trenches, forests or from buildings. The antena consits of...
AR20P bag
STM-7/6-123 - Antenna mast
The STM-7/6-123 is a lightweight manportable/manpack sectionalized tubular mast intended for use with lightweight antennas. Mast sections are...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF20 | EPM handheld transceiver | 2300.100.10 | ||
| RU20 | Rebroadcast unit | 2315.110.12 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| Data cable | 1050.351.01 | |||
| Data cable | 1050.351.02 | |||
| AF cable | 1050.659.01 | |||
| AD-52 | Wire antenna | 6000001411 | ||
| RF13.8 | Hang-up antenna | 2036.100.11 | 0064681101065 | 5985160024749 |
| Extension cable | 6000001104 | 0064301010948 | 5995160034140 | |
| AR20P bag | 6000010027 | |||
| STM-7/6-123 | Antenna mast | 6000001412 |
