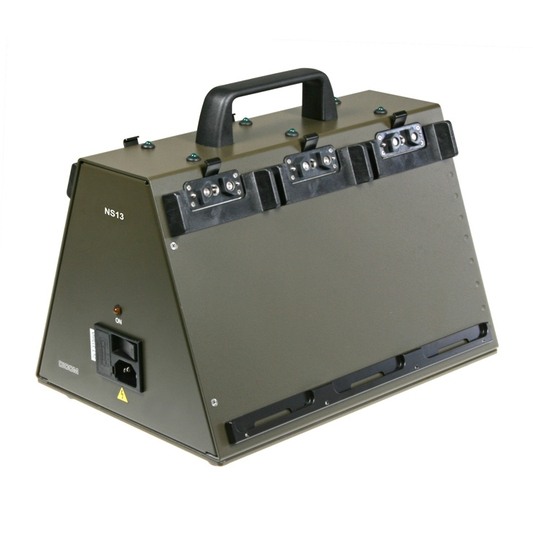

NS13 - Standard battery charger set
Set consists of NS13 standard battery charger, mains connection cable and documentation. For basic operation no other components are required. The charger is used for simultaneous charging of one to six rechargeable battery packs RF13.1 at 0.1 C standard current. Temperature increase of the battery pack above +43 °C causes the standard charging current switch-off and consequently the trickle charge mode is switched on. Charged battery packs are fastened to the charger by means of level closures. The charger can be carried with the charged battery packs. For more details see the device page.
PN (RN): 7003.000.01
KCM: 0299012010792
NSN: 6130160037709
| NS13 operating instructions | 7003.010.02 |
|---|
NS13 - Standard battery charger
PN (RN): 7003.100.01
KČM: 0299012010800
NSN: 6130160037710
The charger is used for simultaneous charging of one to six rechargeable battery packs RF13.1 at 0.1 C...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NS13 | Standard battery charger | 7003.100.01 | 0299012010800 | 6130160037710 |
| Mains connection cable EURO | 5067040106 | 0062416406614 | 6150160053058 |
