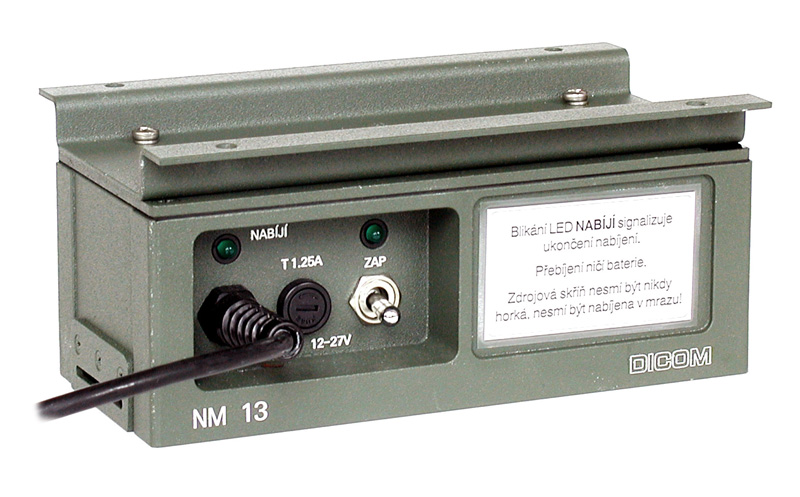

NM13 - Mobile charger
Set consists of NM13 mobile charger and documentation. For basic operation no other components are required. The charger is used for charging of the single battery pack RF13.1 by a constant current. This charger makes possible the charging of the battery pack at mobile sets by means of an on-board mains of 12 V or 24 V. Temperature increase of the battery pack above +43 °C causes the standard charging current switch-off and consequently the trickle charge mode is switched on. The chargers can be fixed to horizontal or vertical surfaces with four M4 screws. They are connected to the on-board mains by means of a power cable with a cigarette lighter adapter, which is included with the charger. The battery pack is fastened to the charger with a lever closure. The charging stops automatically. For more details see the device page.
| NM13 operationg instructions | 7004.010.02 |
|---|
NM13 - Mobile charger
The charger is used for charging of the single battery pack RF13.1 by a constant current. This charger makes...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NM13 | Mobile charger | 7004.100.01 | 0068600200062 | 6130160038293 |
