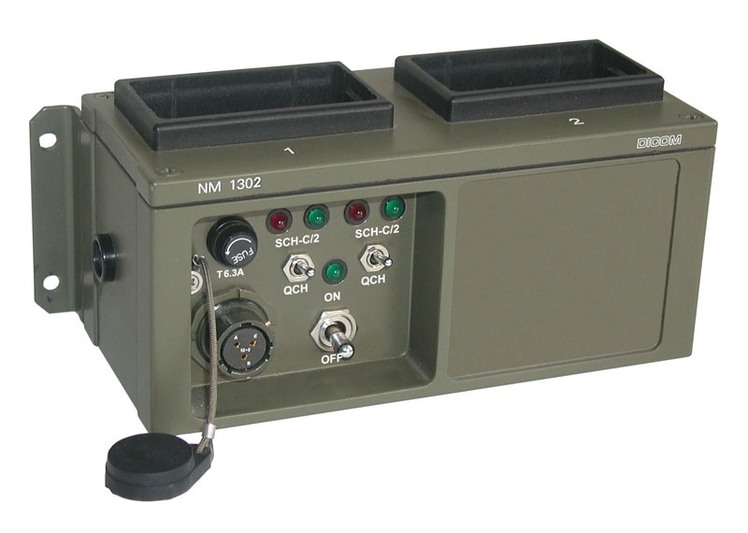

NM1302 - Mobile charger
NM1302 charger is designed to charge BP1301 (NiCd), LP1302 (LiIon) and LP20 (LiIon) battery packs in vehicles providing 12 V or 27 V board mains.
Attach the charger to the vehicle with four M5 screws. Connect to the vehicle mains through the power cable (1050.113.01). Slide the battery packs to be charged to the charger from the top - minimum clearance of 130 mm must be kept above the charger for this reason. LP1302 battery packs can be charged to half capacity before long term storing using this charger.
| DC power supply voltage | from on-board mains 12 V, 27 V |
|---|---|
| Power supply voltage range | 10 V to 33 V |
| Current consumption | max. 5 A |
| Quick charging BP1301 | |
| Charging current | 0.14 A to 1.4 A – processor controlled |
| Battery pack temperature range for quick charging to start | +10 ºC to +40 ºC |
| Charging time | 78 minutes |
| Termination of quick charging | due to voltage drop by 1 %, after 78 minutes, due to temperature rise above 43 ºC |
| Standard charging BP1301 | |
| Charging current | 140 mA |
| Battery pack temperatures for standard charging initiation | 0 ºC to +43 ºC |
| Standard charging terminates | after 15 hours |
| LP1302, LP20 battery pack charging | |
| Charging current | max. 1.6 A |
| Battery pack temperature range for charging initiation | 0 ºC to +43 ºC |
| Charging time | 5 hours |
| Charger operating temperature range | –30 ºC to +50 ºC |
| Dimensions | W 212 mm x H 92 mm x D 100 mm |
| Weight | 1.3 kg |
| NM1302 operating instructions | 7028.010.02 |
|---|
NM1302 - Mobile charger set
Set consists of NM1302 mobile charger and accessories. NM1302 charger is designed to charge BP1301 (NiCd) and LP1302 (LiIon) battery...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NM1302 | Mobile charger set | 7028.000.02 |
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP1302 | Battery pack | 7029.100.02 | ||
| LP20 | Battery pack | 7029.100.11, 7029.100.13 |
