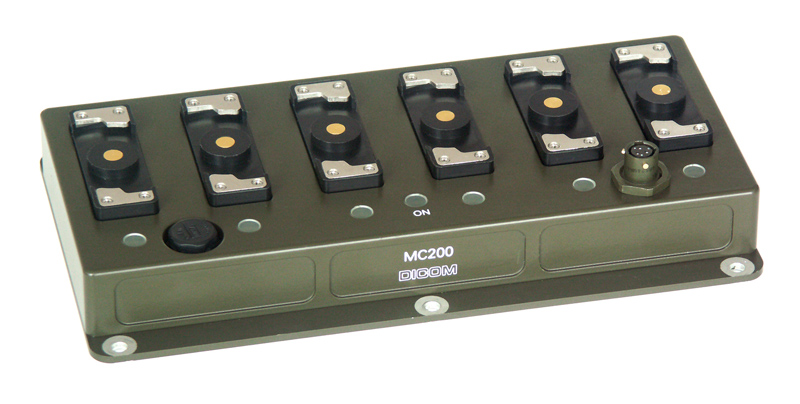

MC200 - Mobile charger
MC200 mobile charger charges up to six BP200 battery packs in vehicles with 12 V or 27 V board mains.
PN (RN): 7033.100.01
KCM: 0294006101092
NSN: 6130160057171
| DC power supply voltage | from on-board mains 12 V, 27 V |
|---|---|
| Power supply voltage range | 10 V to 33 V |
| Current consumption | max. 7 A |
| Current consumption in POWER-OFF mode | max. 1 mA |
| Number of battery packs | 1 to 6 |
| Charging voltage | 4.2 V to 4.4 V (in accord with programed value in battery pack) |
| Charging current | 0.2 A to 2.1 A (in accord with programed value in battery pack) |
| End of charging | |
| • after 360 minutes | |
| • if the charging current drops below the limit programmed in BP200 battery pack memory | |
| BP200 battery pack temperature range for charging to begin: | |
| from | 0 °C |
| to | values programmed in BP200 battery pack memory |
| Charger operating temperatures | -30 °C to +50 °C |
| Dimensions | W 245 mm x H 50 mm x D 135 mm |
| Weight | 1.2 kg |
| MC200 operating instructions | 7033.010.02 |
|---|
BP200 - Battery pack
PN (RN): 7040.100.01
KČM: 0294006101100
NSN: 6130160057172
Power supply for #PR20# personal role radio. Bayonet lock ensures quick replacement operability. The battery pack contains parallel combination of...
MC200 - Mobile charger set
PN (RN): 7033.000.01
KČM: 0294006101085
NSN: 6130160057170
Set consists of MC200 mobile charger and accessories. MC200 mobile charger charges up to six BP200 battery packs in vehicles...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| BP200 | Battery pack | 7040.100.01 | 0294006101100 | 6130160057172 |
| MC200 | Mobile charger set | 7033.000.01 | 0294006101085 | 6130160057170 |
