RF1305 - Mobile set for patrol vehicles

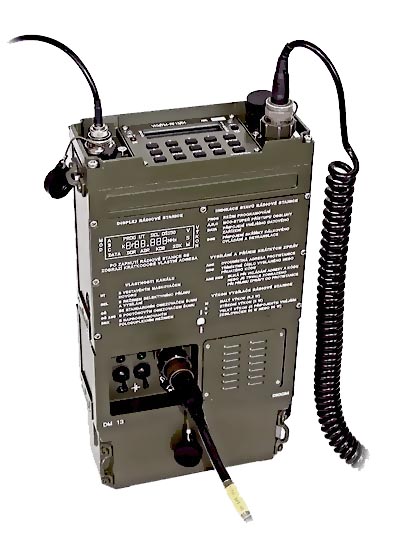

Set consists of RF13 transceiver, DM13 mobile extension and accessories. The set is intended for quick installment in vehicles, particularly in cars. It provides all operating features of the RF13 portable transceiver. The mobile accessory enables power supply from 27 V or 12 V on-board mains, charging of the battery pack and loud monitoring of the received signal. When installed in other types of vehicles, it is necessary to use a frame with the DM13 accessory. The set may be run outside the vehicle as well, with power supply coming from a rechargeable battery pack. For more details on RF13 transceiver, DM13 mobile extension and other set components see relevant pages of this website.
• RF13 transceiver display backlight with DM13 power supply from on-board mains
• Power supply to RF13 transceiver from DM13
• Indicates connection to on-board mains, indicates starting of loud monitoring
• Charging of RF13.1 battery pack and switching to trickle charging
• Automatic disconnecting of loud monitoring when the RF13 transceiver is switched off
• Transceiver may be run outside the vehicle
| Frequency range | 30.000 MHz to 87.975 MHz |
|---|---|
| Input impedance | 50 Ω |
| Output impedance | 50 Ω |
| Channel spacing | 25 kHz |
| Number of channels | 2320 |
| Channel selection | from transceiver keyboard or handset |
| Operating modes | simplex or semiduplex telephony or data transmission to 16 kbit/s |
| Voice encryption | through internal digital scrambler or built-in EU13.1 encryption card |
| Modulation | FM, max. deviation 5.6 kHz |
| RF power output | 5 W nominal, 0.2 W reduced |
| Receiver sensitivity | better than 0.5 µV at 12 dB SINAD |
| Effectively transmitted frequencies range | |
| narrow band | 300 Hz to 3400 Hz |
| wide band | 150 Hz to 9000 Hz |
| Modulation signal level for 4 kHz frequency deviation | 100 mV for F3 operation |
| 400 mV for data | |
| AF amplifier output | 1 W in loudspeaker with impedance 6 Ω |
| AF frequency range | 300 Hz to 3000 Hz in 6 dB range |
| Power supply voltage | 10 V to 33 V |
| Maximal current consumption | max. 4.5 A at 12 V power supply voltage |
| max. 2.0 A at 27 V power supply voltage | |
| Charging current | 400 mA ± 50 mA |
| Trickle current | 30 mA ± 15 mA |
| Operating temperature | -30 °C to +60 °C |
| Set weight | max. 11 kg |
| RF13 operating instructions | 2000.010.02 |
|---|---|
| RF13 brief operating instructions | 2000.011.02 |
| DM13 operating instructions | 7005.010.02 |
RF13 - Transceiver
The RF13 transceiver with built-in digital scrambler is a portable VHF transceiver, which is used for tactical communication. It is...
RF13.1 - Rechargeable battery pack
Battery pack for portable RF13 VHF transceiver. It contains a compact quick-charge NiCd batteries pack. The box contains an electronic...
DM13 - Mobile extension
The unit is used in the 5 W power output RF1305 mobile set. It is placed between the RF13 transceiver...
Frame
The frame is used for spring-mounted installation with four M8 screws into a vehicle. The frame is used for the...
RF13.2 - Handset with control
The handset can be connected to any of the two audio connectors on the RF13 transceiver or to any transceiver...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13 | Transceiver | 2000.100.04 | 5820160015663 | |
| RF13.1 | Rechargeable battery pack | 7000.100.02 | ||
| DM13 | Mobile extension | 7005.100.02 | ||
| Frame | 7013.100.01 | 0064742301391 | 5975160034640 | |
| RF13.2 | Handset with control | 2022.100.02 | 0064333000661 | 5965160034636 |
| Power supply cable | 1050.101.01 | 0064301010513 | 5995160034135 |
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
RF13.3 - Handset
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Handset holder
PK20 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
RF headsets
The RF product line headsets are designed for RF20 and RF13 radio system transceivers.
AS1301 - Short tape antenna 0.5 m
Short-distance communication between RF20 or RF1301 transceivers. This antenna can also be used with the RF13 transceiver. The antenna proper...
AL13 - Long tape antenna 1.5 m
This is a basic type antenna for RF13 transceiver (VHF). It can be easily used instead of 1.5 m...
RF13.8 - Hang-up antenna
This antenna is used for operation of the RF13 transceiver from trenches, forests or from buildings. The antena consits of...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| RF13.3 | Handset | 2022.100.52 | 0064333000731 | 5965160034142 |
| Handset holder | 2026.700.01 | 0064662900760 | 5965160034225 | |
| PK20 | Fill gun set | 2320.000.02 | ||
| Light fabric cover | 2000.118.01 | 0064722003213 | 5820160034145 | |
| Antenna cable (3 m) | 2011.904.01 | 0064301010443 | 5995160034134 | |
| Antenna cable (10 m) | 2011.904.02 | 0064301010924 | 5995160020406 | |
| RF headsets | ||||
| AS1301 | Short tape antenna 0.5 m | 2038.100.01 | 0064681101058 | 5985160025492 |
| AL13 | Long tape antenna 1.5 m | 2039.100.01 | 0064685905834 | 5985160033179 |
| RF13.8 | Hang-up antenna | 2036.100.11 | 0064681101065 | 5985160024749 |
| Extension cable | 6000001104 | 0064301010948 | 5995160034140 | |
| Manpack bag | 2000.116.01 | 0064725000806 | 5820160034146 | |
| Carrying straps | 2000.117.01 | 0064701000990 | 5820160034144 | |
| Spare parts set | 2000.110.03 | 0064751000755 | 5820160021957 |
