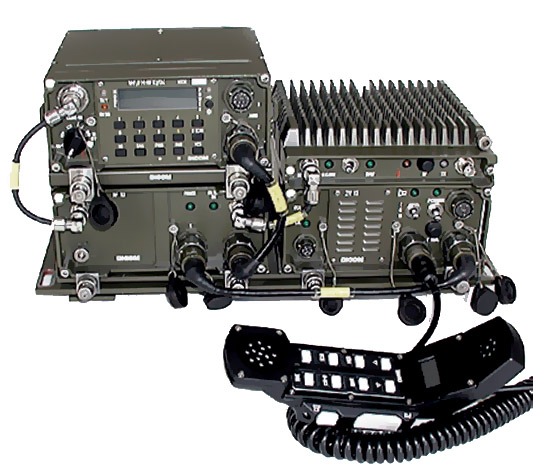

RF1350 - Mobile set
This mobile set with maximal adjustable output power of 50 W can be installed in all wheeled and tracked vehicles. By adding the AF13 co-site filter to the set, we made it possible to simultaneously operate more mobile sets in one vehicle. The filter tunes automatically when the frequency of the set is changed. If the mobile set is designed for installation in wheel vehicles without artillery or mortar weaponry, or for fixed posts, you may use the lighter, non-cushioned frame 7007.100.30 instead of springcushion frame 7007.100.20. All components of the set are installed in a springcushion frame. Technical parameters of the set are identical with 2011.041.61 mobile set.
| RF13 operating instructions | 2000.010.02 |
|---|---|
| RF13 brief operating instructions | 2000.011.02 |
| RF1350/RF1325 operating instructions | 2011.010.02 |
| RF1350/RF1325 brief operating instructions | 2011.011.02 |
RF1350 - Mobile set
This mobile set with maximal output power of 50 W can be installed in all wheeled and tracked vehicles. The...
RF1350 - Mobile set
This mobile set with maximal adjustable output power of 50 W can be installed in all wheeled and tracked vehicles...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF1350 | Mobile set | 2011.041.11 | ||
| RF1350 | Mobile set | 2011.041.21 |
RF13 - Transceiver
Radiostanice RF13 s vestavěným maskovačem řeči je přenosná VKV radiostanice, určená pro spojení na taktickém stupni velení.
ZV13.1 - Power amplifier 50 W (Net)
RF power amplifier for RF13 transceivers. ZV13.1 amplifier includes a high speed data modem with GMSK modulation and 16...
AF13 - Co-site filter
The AF13 filter decreases mutual interference between two VHF transceivers operating with antennas close to each other, for instance, in...
Frame
The frame is used for fixing two components of the mobile set to each other, or for installing a satellite...
Frame
CD for modem configuration
ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13 | Transceiver | 2000.100.02 | 0061600202216 | 5820160015663 |
| ZV13.1 | Power amplifier 50 W (Net) | 2011.100.51 | 0068600200219 | 5996160039135 |
| AF13 | Co-site filter | 2028.100.01 | 0064241004021 | 5895160038170 |
| RF cable | 1050.401.01 | 0064301010607 | 5995160038172 | |
| RF cable | 2010.900.01 | 0064301010498 | 5995160024752 | |
| Frame | 7007.100.50 | 0064662200747 | 5975160034637 | |
| Frame | 7007.100.20 | 0064662200792 | 5975160034638 | |
| AF cable | 1050.601.02 | 0064301010614 | 5995160038171 | |
| AF cable | 1050.605.01 | 0064301010638 | 5995160038174 | |
| Grounding | 1050.993.02 | 0064301010520 | 5995160034136 | |
| Grounding | 1050.993.03 | 0064301010537 | 5995160034137 | |
| Grounding | 1050.993.05 | 0064301010544 | 5995160034138 | |
| Connector nut | 2000.475.01 | 0064661601312 | 5935160038320 | |
| CD for modem configuration | 2025.500.51 | |||
| Grounding | 1050.993.04 | 0064301010892 | 5995160034139 | |
| AF cable | 2010.901.02 | 0064301010715 | 5995160034223 | |
| RF cable | 2010.900.02 | 0064301010708 | 5995160034222 |
NM13 - Mobile charger
RM13 - Mobile quick charger set
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
Groundplane antenna
The antenna is intended for use on stationary posts. The antenna can be installed on all types of masts supplied...
Discon antenna
Telescopic winch driven mast 10 m
Antenna mast
It is intended for use in field conditions to install all types of GROUNDPLANE antennas supplied by DICOM. Individual sections...
RF13.2 - Handset with control
RF13.3 - Handset
Handset holder
PK1302 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
Data cable (RS232C)
RF headsets
The RF product line headsets are designed for RF20 and RF13 radio system transceivers.
RF13.1 - Rechargeable battery pack
Battery pack for portable RF13 VHF transceiver. It contains a compact quick-charge NiCd batteries pack. The box contains an electronic...
AL13 - Long tape antenna 1.5 m
This is a basic type antenna for RF13 transceiver (VHF). It can be easily used instead of 1.5 m...
PD13 - Long-wire antenna
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NM13 | Mobile charger | 7004.000.01 | 0299012006917 | 6130160022119 |
| RM13 | Mobile quick charger set | 7014.000.01 | 0299012000414 | 6130160018774 |
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| Groundplane antenna | 2036.100.38 | |||
| Discon antenna | 2036.100.18 | 0064681101609 | 5985160039132 | |
| Telescopic winch driven mast 10 m | 2036.100.20 | 0064681500217 | 5985160039124 | |
| Antenna mast | 2036.100.39 | |||
| RF13.2 | Handset with control | 2022.100.01 | 0064333000661 | 5965160034636 |
| RF13.3 | Handset | 2022.100.51 | 0064333000731 | 5965160034142 |
| Handset holder | 2026.700.01 | 0064662900760 | 5965160034225 | |
| PK1302 | Fill gun set | 2320.000.20 | 0067100047544 | 5820160049721 |
| UC13 | Attenuator 10 dB | 2029.100.01 | 0064231005494 | 5985160017697 |
| Power supply cable 1.5 m | 2010.902.02 | 0064301010931 | 5995160024844 | |
| Power supply cable 3 m | 2010.902.01 | 0064301010467 | 5995160020047 | |
| Antenna cable (3 m) | 2011.904.01 | 0064301010443 | 5995160034134 | |
| Antenna cable (10 m) | 2011.904.02 | 0064301010924 | 5995160020406 | |
| Data cable | 1050.271.01 | 0064301017336 | 5995160038514 | |
| Data cable (RS232C) | 1050.350.01 | |||
| RF headsets | ||||
| RF13.1 | Rechargeable battery pack | 7000.100.01 | 0063821000703 | 6130160020367 |
| AL13 | Long tape antenna 1.5 m | 2039.100.01 | 0064685905834 | 5985160033179 |
| PD13 | Long-wire antenna | 2036.100.10 | 0064681101577 | 5985160038730 |
| Light fabric cover | 2000.118.01 | 0064722003213 | 5820160034145 | |
| Carrying straps | 2000.117.01 | 0064701000990 | 5820160034144 |
