RF1302EM - N/A
| RF20 operating instructions | 2300.010.02 |
|---|---|
| RF20 short operating instructions | 2300.011.02 |
| MA1302 operating instructions | 7018.010.22 |
RF1302E - EPM handheld transceiver
Ruční vícepásmová EPM radiostanice RF1302E se zvýšenou odolností proti radioelektronickému boji je určena pro spojení na taktickém stupni velení u všech druhů vojsk.
- řešení optimalizované pro AČR

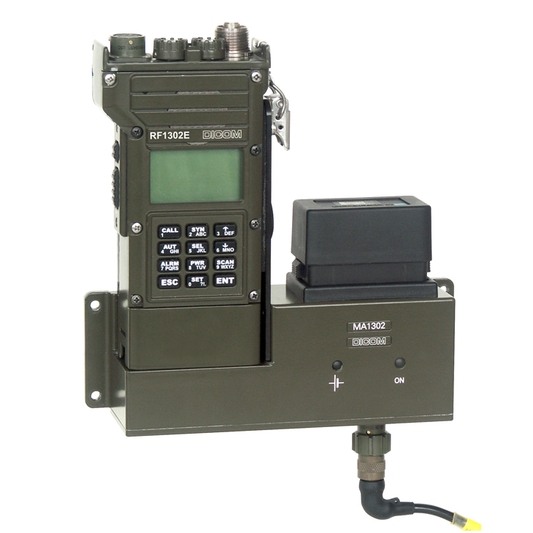

MA1302 - Vehicle support
MA1302 vehicle support supplies RF20 transceivers with power and charges battery packs for this transceiver in vehicles with 12 V...
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
1.88 m VHF vehicle antenna
It is intended for fixed mounting on the metal bodywork of the vehicle. A characteristic feature of the antenna is...
RM1301 - Handheld microphone/speaker
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF1302E | EPM handheld transceiver | 2300.100.11 | 0067100095644 | 5820160066590 |
| MA1302 | Vehicle support | 7018.100.21 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| Power supply cable | 1050.125.01 | 0209906100700 | 6150160055167 | |
| 1.88 m VHF vehicle antenna | 2036.100.40 | |||
| RM1301 | Handheld microphone/speaker | 2009.100.01 | 0064332001036 | 5965160024751 |
LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
NM1302 - Mobile charger set
Set consists of NM1302 mobile charger and accessories. NM1302 charger is designed to charge BP1301 (NiCd) and LP1302 (LiIon) battery...
PC20 - Small mains charger set
2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...
AS1301 - Short tape antenna 0.5 m
Short-distance communication between RF20 or RF1301 transceivers. This antenna can also be used with the RF13 transceiver. The antenna proper...
AL1301 - Long tape antenna 1.1 m
This is a basic type antenna for RF20 or RF1301 transceivers. This antenna can also be used with the RF13...
PD13 - Long-wire antenna
RF13.8 - Hang-up antenna
This antenna is used for operation of the RF13 transceiver from trenches, forests or from buildings. The antena consits of...
AL13 - Long tape antenna 1.5 m
This is a basic type antenna for RF13 transceiver (VHF). It can be easily used instead of 1.5 m...
RM20 - Handset with control
The handset with control is intended to control RF20 transceiver. Besides the basic functions of radio channel monitoring, transceiver keying and voice modulation, it features channel selection and step volume change.
- 10 pin connector DICOM
RF13.3 - Handset
Handset holder
PK1302 - Fill gun set
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
Transceiver bag
Battery pack bag extended
RF cable
High frequency protection 1 GHz 200 V 400 W
Data cable (RS232C)
CD for modem configuration
ModEx (Modem Expert) application is a universal configuration tool for setting up of network radio modems (compatible with MIL-STD188-220). ModEx...
RF headsets
The RF product line headsets are designed for RF20 and RF13 radio system transceivers.
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP20 | Battery pack | 7029.100.11, 7029.100.13 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| NU1302 | Universal charger set N/A | 7027.000.01 | 0299012011670 | 6130160048118 |
| NM1302 | Mobile charger set | 7028.000.01 | 0299012011694 | 6130160048120 |
| PC20 | Small mains charger set | 7046.000.11 | ||
| 2.6 m VHF vehicle antenna | 2036.100.23, 2036.100.24 | |||
| AS1301 | Short tape antenna 0.5 m | 2038.100.01 | 0064681101058 | 5985160025492 |
| AL1301 | Long tape antenna 1.1 m | 2037.100.01 | 0064681101236 | 5985160015375 |
| PD13 | Long-wire antenna | 2036.100.10 | 0064681101577 | 5985160038730 |
| RF13.8 | Hang-up antenna | 2036.100.11 | 0064681101065 | 5985160024749 |
| AL13 | Long tape antenna 1.5 m | 2039.100.01 | 0064685905834 | 5985160033179 |
| RM20 | Handset with control | 2313.100.01 | ||
| RF13.3 | Handset | 2022.100.51 | 0064333000731 | 5965160034142 |
| Handset holder | 2026.700.01 | 0064662900760 | 5965160034225 | |
| PK1302 | Fill gun set | 2320.000.20 | 0067100047544 | 5820160049721 |
| Transceiver bag | 6000010032 | 0067100045353 | 5820160044342 | |
| Transceiver bag | 6000010038 | |||
| Battery pack bag | 7020.116.01 | 0064725000813 | 5895160015377 | |
| Battery pack bag extended | 6000010039 | |||
| Antenna cable (3 m) | 2011.904.01 | 0064301010443 | 5995160034134 | |
| Antenna cable (10 m) | 2011.904.02 | 0064301010924 | 5995160020406 | |
| RF cable | 1050.405.02 | |||
| High frequency protection 1 GHz 200 V 400 W | 5605002002 | |||
| Data cable (USB) | 1050.285.01 | 0067100044514 | 5995160043005 | |
| Data cable (RS232C) | 1050.285.02 | |||
| CD for modem configuration | 2025.500.51 | |||
| RF headsets |
