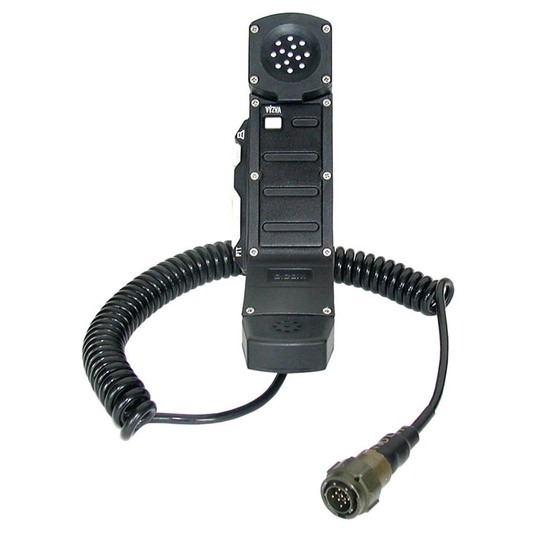

RF13.3 - Handset
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and transmit tone signals. The construction guarantees mechanical resistance, watertightness and stiffness.
PN (RN): 2022.100.52
KCM: 0064333000731
NSN: 5965160034142
| Power supply | from RF13 transceiver (2000.100.03 or 2000.100.04) or from accessory |
|---|---|
| Control functions | |
| two step volume controls | |
| PTT switch | |
| audio tone signalling | |
| Microphone | piezoceramic |
| Microphone sensitivity | 100 mV (1 kHz/20 mm/80 dB) |
| Earphone | electrodynamic loudspeaker |
| Earphone sensitivity | min. 90 dB (900 mV/1 kHz/20 mm) |
| Impedance | 30 Ω |
| Operating temperature range | -30 °C to +60 °C |
| Weight | 0.4 kg |
