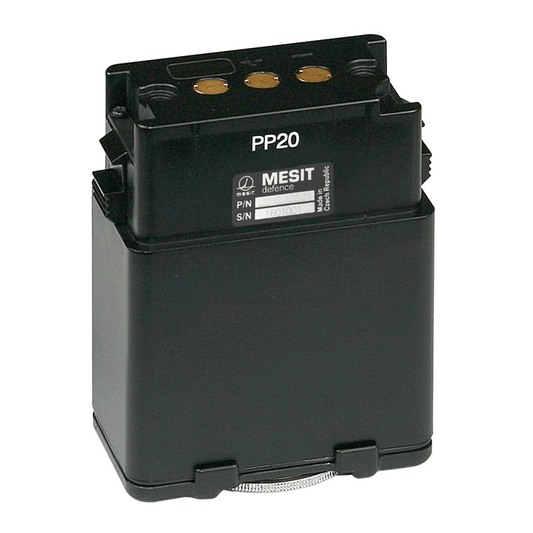

PP20 - Battery holder
AA disposable batteries holder for the RF20 radio system that may be used in lieu of the LP1302 or LP20 rechargeable LiIon batteries.

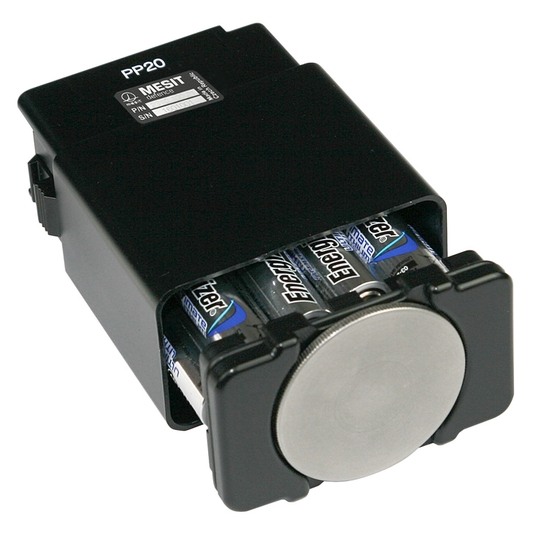

The battery magazine of the PP20 must be loaded with a total of 12 fresh AA size batteries. Recommended battery type is Energizer Lithium Ultimate L91 1.5 V (03-2023). The batteries in the holder can be replaced simply by hand, no special tools (screwdriver, wrench etc.) needed. Batteries are not included.
PN (RN): 7029.100.50
| Type of cells | primary (lithium, alkaline) |
|---|---|
| Size of cells | AA |
| Number of cells | 12 |
| Maximum current | 3.5 A* |
| Protection | short circuit, faulty cell usage |
| Operating temperature | -30 °C to +70 °C* |
| Environmental protection | IP64 |
| Color | black |
| Dimensions | W 78 mm x H 100 mm x D 45 mm |
| Weight | 0.24 kg* |
| * parameter of holder only (not cells) |
