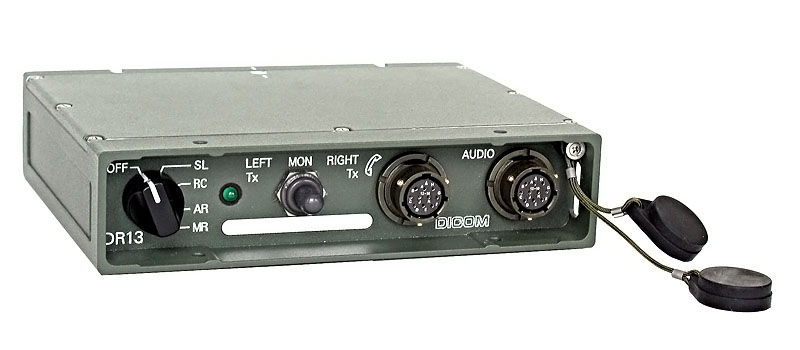

DR13 - Accessory for remote control and rebroadcast
It is an accessory to the RF13 transceiver. It provides manual or automatic rebroadcast of radio signals in both transmission directions, or remote control of the transceiver´s basic functions. With a field telephone connected, it can be used for communication with operators in the radio transmission direction or for the operators´ communication through a service line. The unit automatically adjusts correct polarity to the two-wire field cable.
PN (RN): 2021.100.02
KCM: 0064241003701
NSN: 5820160024845
| Power supply | from RF13 transceiver |
|---|---|
| Remote control | |
| • connection of a user via an up to 2 500 m long two-wire cable | |
| • control of transceiver through standard field telephones | |
| • service line communication and tone signalling | |
| Automatic rebroadcast | |
| • 150 Hz frequency transmission direction switching | |
| • voice transmission between end transceivers | |
| • voice encrypted speech transmission | |
| • tone signalling transmission | |
| • monitoring of both transmission directions in the box | |
| Manual rebroadcast | |
| • voice and tone signalling transmission between end transceivers | |
| • voice encrypted speech transmission in a set direction | |
| • monitoring of radio operation through a handset connected to DR13 | |
| • communication from a handset connected to DR13 | |
| • handset ringing | |
| Operating temperature range | -30 °C to +60 °C |
| Dimensions | W 184 mm x H 45 mm x D 151 mm |
| Weight | 0.9 kg |
| DR13 operating instructions | 2021.010.02 |
|---|
DR13 - Accessory for remote control and rebroadcast set
PN (RN): 2021.000.01
KČM: 0068600200156
NSN: 5820160023155
Soupravu tvoří doplněk pro retranslaci DR13 a další příslušenství pro zajištění spolehlivého provozu. DR13 je xterní doplňkové zařízení k radiostanici...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| DR13 | Accessory for remote control and rebroadcast set | 2021.000.01 | 0068600200156 | 5820160023155 |
