AR13.1 - Automatic rebroadcast station

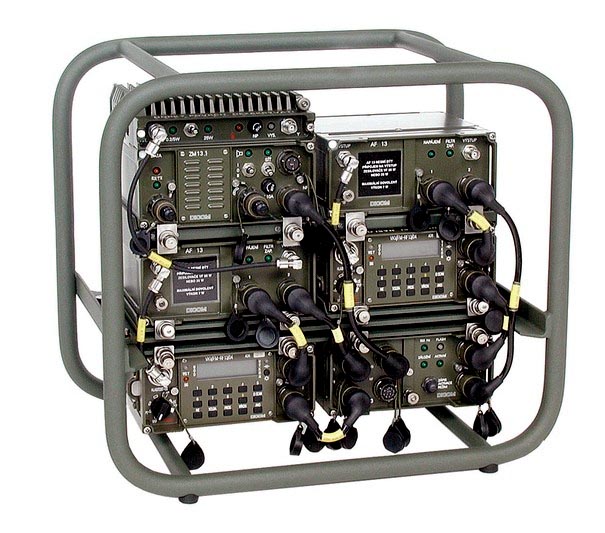

The AR13.1 automatic rebroadcast station, in stationary or mobile assemblies, is designed to automatically rebroadcast signals, increasing operating range of #RF13# and RF1301 transceiver radio networks in the entire frequency range and in all operating modes, with RF20 and RF2050 transceivers on fixed frequency in 30.000 MHz to 87.975 MHz frequency range. The AR13.1 station includes ZV13.1 (50 W) power amplifier.

PN (RN): 2018.100.61
Automatic signal rebroadcasting
• Voice operation with 150 Hz pilot frequency, including encrypted voice communication.
• Short coded messages (FLASH).
• Data in MD13.1 radio modem format.
• Phone dialing.
Repeater activation modes
Permanently active.
• Activation command.
• Activation command issued by authorized users (present in the list of end stations stored in the repeater).
Frequency range 30.000 MHz to 87.975 MHz
Input and output impedance 50 Ω
Nominal output of the transmitter 50 W
Minimum frequency separation between receiving and transmitting frequencies 10 %
Direct supply voltage 18 V to 33 V
Current consumption at 27 V supply voltage max. 9 A
Operating temperatures -20 °C to +50 °C
Dimensions W 490 mm x H 430 mm x D 335 mm
Weight 33 kg
AR13.1 operating instructions 2018.010.52
RF13 operating instructions 2000.010.02
RF1325/RF1350 operating instructions 2011.010.02
Switch display: Catalog / List
Sort by
AR13.1 - Automatic rebroadcast station set

AR13.1 - Automatic rebroadcast station set

PN (RN): 2018.000.61

Set consists of AR13.1 rebroadcast station (with ZV13.1 amplifier) and accessories. The AR13.1 automatic rebroadcasting station, in...

Type designation Name PN (RN) KCM NSN
AR13.1 Automatic rebroadcast station set 2018.000.61
Switch display: Catalog / List
Sort by
RF13 - Transceiver

RF13 - Transceiver

PN (RN): 2000.100.02
KČM: 0061600202216
NSN: 5820160015663

Radiostanice RF13 s vestavěným maskovačem řeči je přenosná VKV radiostanice, určená pro spojení na taktickém stupni velení.

ZV13.1 - Power amplifier 50 W (Net)

ZV13.1 - Power amplifier 50 W (Net)

PN (RN): 2011.100.51
KČM: 0068600200219
NSN: 5996160039135

RF power amplifier for RF13 transceivers. ZV13.1 amplifier includes a high speed data modem with GMSK modulation and 16...

AF13 - Co-site filter

AF13 - Co-site filter

PN (RN): 2028.100.01
KČM: 0064241004021
NSN: 5895160038170

The AF13 filter decreases mutual interference between two VHF transceivers operating with antennas close to each other, for instance, in...

RJ13 - Rebroadcast unit

RJ13 - Rebroadcast unit

PN (RN): 2018.200.01
KČM: 0068680390019
NSN: 5820160020330
RJ13 controls the AR13.1 automatic rebroadcast station unit operation.
Frame

Frame

PN (RN): 7007.100.60
KČM: 0064662200862
NSN: 2975160020300
Shockmount frame for automatic rebroadcast station AR13. It can be used for both stationary and mobile assembly.
Frame

Frame

PN (RN): 7007.100.50
KČM: 0064662200747
NSN: 5975160034637

The frame is used for fixing two components of the mobile set to each other, or for installing a satellite...

Connector

Connector

PN (RN): 1050.628.01
KČM: 0229900095394
NSN: 5935160020184
Connector

Connector

PN (RN): 1050.628.03
AF cable

AF cable

PN (RN): 1050.601.07
KČM: 0064301016869
NSN: 5995160020219
AF cable

AF cable

PN (RN): 1050.601.08
KČM: 0064301016876
NSN: 5995160020220
AF cable

AF cable

PN (RN): 1050.615.01
KČM: 0064301016890
NSN: 5995160020222
AF cable

AF cable

PN (RN): 1050.615.02
KČM: 0064301016908
NSN: 5995160020223
AF cable

AF cable

PN (RN): 1050.616.01
KČM: 0064301016915
NSN: 5995160020224
AF cable

AF cable

PN (RN): 1050.617.01
KČM: 0064301016922
NSN: 5995160020225
AF cable

AF cable

PN (RN): 1050.617.02
KČM: 0229900200796
NSN: 5995160010136
RF cable

RF cable

PN (RN): 1050.401.02
KČM: 0064301016838
NSN: 5995160020218
RF cable

RF cable

PN (RN): 1050.401.03
KČM: 0229900200811
NSN: 5995160010138
RF cable

RF cable

PN (RN): 1050.401.04
KČM: 0229900200804
NSN: 5995160010137
Grounding

Grounding

PN (RN): 1050.993.01
KČM: 0064681901249
NSN: 5995160034143
Grounding

Grounding

PN (RN): 1050.993.05
KČM: 0064301010544
NSN: 5995160034138
Grounding

Grounding

PN (RN): 1050.993.12
KČM: 0064301016953
NSN: 5995160020242
Grounding

Grounding

PN (RN): 1050.993.16
KČM: 0064301016960
NSN: 5995160020265
Connector nut

Connector nut

PN (RN): 2000.475.01
KČM: 0064661601312
NSN: 5935160038320
Type designation Name PN (RN) KCM NSN
RF13 Transceiver 2000.100.02 0061600202216 5820160015663
ZV13.1 Power amplifier 50 W (Net) 2011.100.51 0068600200219 5996160039135
AF13 Co-site filter 2028.100.01 0064241004021 5895160038170
RJ13 Rebroadcast unit 2018.200.01 0068680390019 5820160020330
Frame 7007.100.60 0064662200862 2975160020300
Frame 7007.100.50 0064662200747 5975160034637
Connector 1050.628.01 0229900095394 5935160020184
Connector 1050.628.03
AF cable 1050.601.07 0064301016869 5995160020219
AF cable 1050.601.08 0064301016876 5995160020220
AF cable 1050.615.01 0064301016890 5995160020222
AF cable 1050.615.02 0064301016908 5995160020223
AF cable 1050.616.01 0064301016915 5995160020224
AF cable 1050.617.01 0064301016922 5995160020225
AF cable 1050.617.02 0229900200796 5995160010136
RF cable 1050.401.02 0064301016838 5995160020218
RF cable 1050.401.03 0229900200811 5995160010138
RF cable 1050.401.04 0229900200804 5995160010137
Grounding 1050.993.01 0064681901249 5995160034143
Grounding 1050.993.05 0064301010544 5995160034138
Grounding 1050.993.12 0064301016953 5995160020242
Grounding 1050.993.16 0064301016960 5995160020265
Connector nut 2000.475.01 0064661601312 5935160038320
Switch display: Catalog / List
Select group
Sort by
SZ13.1 - Power supply set

SZ13.1 - Power supply set

PN (RN): 7011.000.01
KČM: 0299012007073
NSN: 6130160024534

Set consists of SZ13.1 power supply and documentation. For basic operation no other components are required. The SZ13.1...

2.6 m VHF vehicle antenna

2.6 m VHF vehicle antenna

PN (RN): 2036.100.23, 2036.100.24

The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern...

Discon antenna

Discon antenna

PN (RN): 2036.100.18
KČM: 0064681101609
NSN: 5985160039132
This stationary­ antenna is fixed to a mast and is used for communication with all RF13 transceiver sets. This antenna...
Antenna mast

Antenna mast

PN (RN): 2036.100.39

It is intended for use in field conditions to install all types of GROUNDPLANE antennas supplied by DICOM. Individual sections...

Power supply cable 1.5 m

Power supply cable 1.5 m

PN (RN): 2010.902.02
KČM: 0064301010931
NSN: 5995160024844
Power supply cable 3 m

Power supply cable 3 m

PN (RN): 2010.902.01
KČM: 0064301010467
NSN: 5995160020047
Antenna cable (3 m)

Antenna cable (3 m)

PN (RN): 2011.904.01
KČM: 0064301010443
NSN: 5995160034134
Antenna cable (10 m)

Antenna cable (10 m)

PN (RN): 2011.904.02
KČM: 0064301010924
NSN: 5995160020406
RF13.3 - Handset

RF13.3 - Handset

PN (RN): 2022.100.51
KČM: 0064333000731
NSN: 5965160034142
When connected to the audio connectors of the transceiver, the handset makes it possible to make radio phonic communication and...
Type designation Name PN (RN) KCM NSN
SZ13.1 Power supply set 7011.000.01 0299012007073 6130160024534
2.6 m VHF vehicle antenna 2036.100.23, 2036.100.24
Discon antenna 2036.100.18 0064681101609 5985160039132
Antenna mast 2036.100.39
Power supply cable 1.5 m 2010.902.02 0064301010931 5995160024844
Power supply cable 3 m 2010.902.01 0064301010467 5995160020047
Antenna cable (3 m) 2011.904.01 0064301010443 5995160034134
Antenna cable (10 m) 2011.904.02 0064301010924 5995160020406
RF13.3 Handset 2022.100.51 0064333000731 5965160034142
