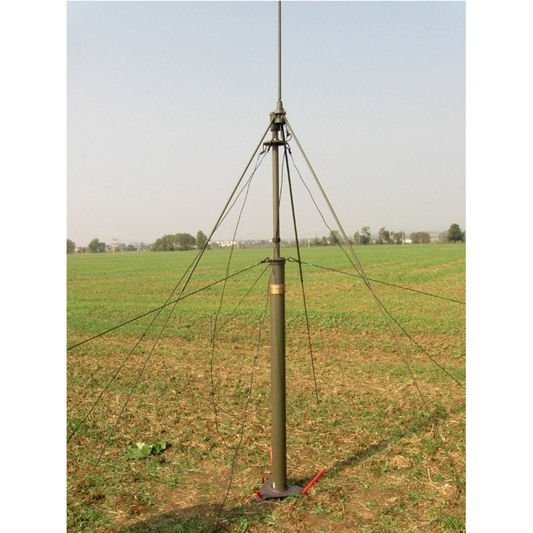

Antenna mast
It is intended for use in field conditions to install all types of GROUNDPLANE antennas supplied by DICOM. Individual sections are made of composite materials characterized by high rigidity/weight ratio and high resistance to environmental conditions. The mast is anchored on two levels with three anchor guys at each level. If necessary, the mast can be attached directly to the vehicle by mounting adapters.
PN (RN): 2036.100.39
| Top load | up to 10 kg (depending on the soil surface) |
|---|---|
| Wind resistance | 130 km/h |
| Number of sections | 8 |
| Erected mast height | 9 m |
| Lowered mast length | 1.8 m |
| Antenna mounting adaptor | 40 mm diameter spigot |
| Mast setup time | 10 min. (2 operators) |
| Mast weight without accessories | 12 kg |
| Color | NATO army green 24x5 |
| Operating temperature | -30 °C to +55 °C |
| Storage temperature | -40 °C to +70 °C |
