RF13.8 - Hang-up antenna

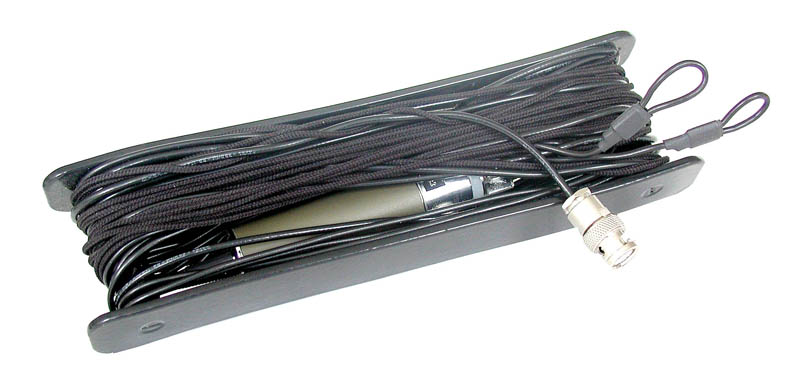

This antenna is used for operation of the RF13 transceiver from trenches, forests or from buildings. The antena consits of a halyard for raising antenna, an antenna element, an impedance matching unit in the bottom part of the antena element, two 2.5 m counterpoises and a 5 m coaxial cable terminated with a BNC connector. The antenna is reeled on an aluminum alloy winch. Its main advantage consists in the possibility of its raising to a higher position than can be achieved by the whip antenna. In this way, the range of RF13 can be increased to 15 km.
PN (RN): 2036.100.11
KCM: 0064681101065
NSN: 5985160024749
| Frequency range | 30 MHz to 88 MHz |
|---|---|
| Impedance | 50 Ω |
| VSWR | max. 4 |
| Power rating | 12.6 W (10 W + 1 dB) |
| Radiation pattern | omnidirectional, with vertical polarization |
| Connector | BNC termination |
| Operating temperature range | -30 °C to +60 °C |
| Antenna length | 2 m |
| Power supply cable length | 5 m |
| Weight | 0.5 kg |
