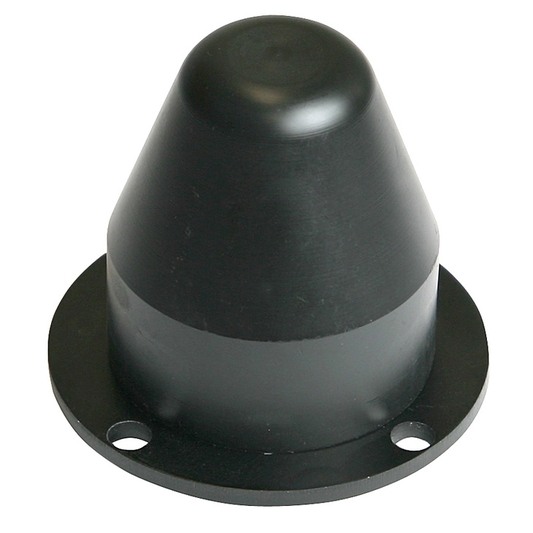

Vehicle antenna 2.4 GHz
| Frequency range | 2400 MHz to 2490 MHz |
|---|---|
| Gain | +2 dBi |
| Polarization | vertical |
| Radiation pattern | omnidirectional |
| Maximum excitation power | 5 W |
| Input impedance | 50 Ω |
| VSWR | < 1.5 |
| Connector | SMA (female) |
| Dimensions | 56 mm x 65 mm x 90 mm |
| Weight | 0.095 kg |
| Operating temperature | -55 °C to +71 °C |
| Installation method | 4 screws M5 on 57.5 mm circle |
