Anténa mobilní KV 5 m

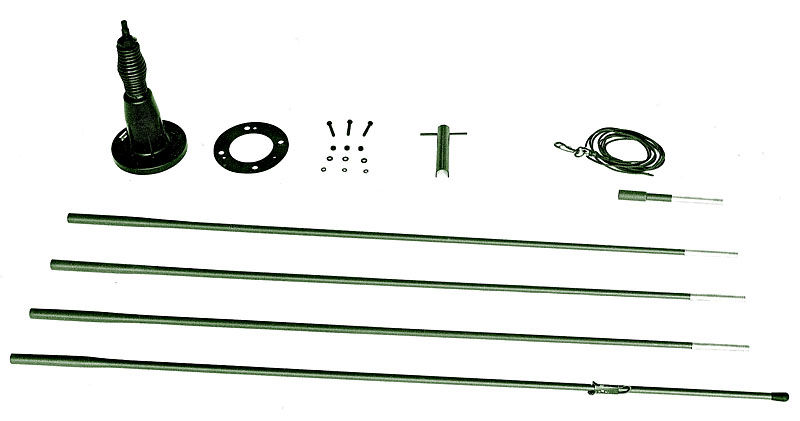

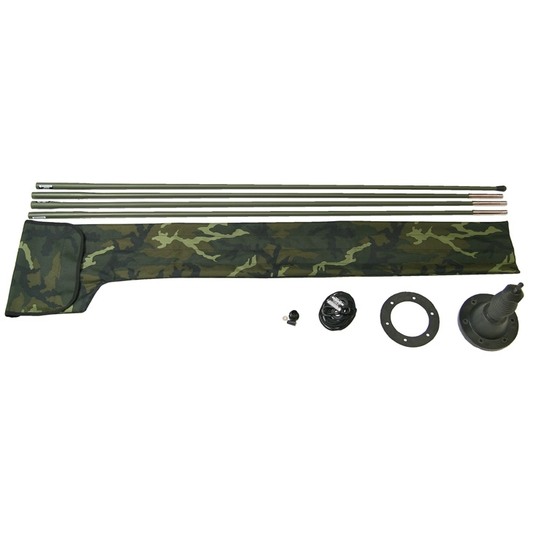

Antenna 2036.100.55 is a mobile whip HF antenna for operating frequencies 1.5 MHz to 30 MHz with omnidirectional pattern and vertical polarization. This antenna is used for R-150S transceiver set. The used materials and technologies ensure high mechanical resistance and good electrical properties. It is designed to be used on tactical wheeled and tracked vehicles.
PN (RN): 2036.100.55
| Frequency range | 1.5 MHz to 30 MHz |
|---|---|
| Polarization | vertical |
| Resistance to high voltage | 16 kV RMS 50/60 Hz |
| Antenna radiator length | |
| • 2 sections of the antenna whip | 2.85 m |
| • 3 sections of the antenna whip | 3.72 m |
| With extension bar accessory | 4.86 m |
| Antenna element base diameter | 144 mm |
| Antenna radiator diameter | 15 mm on average |
| Total weight of the antenna with | |
| • 3 antenna sections | 2.6 kg |
| • including extension bar | 3 kg |
| Impact resistance | to obstacle in the antenna center at 40 km/h |
| Operating temperatures | -40 °C to +70 °C |
