Discon antenna

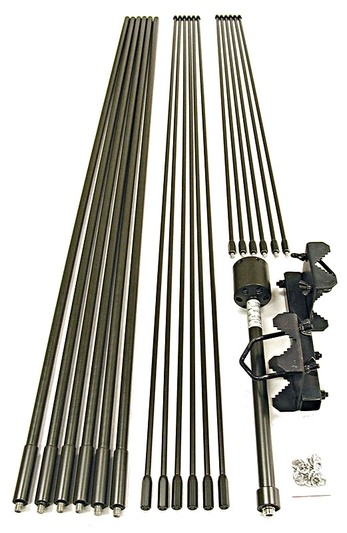

This stationary antenna is fixed to a mast and is used for communication with all RF13 transceiver sets. This antenna consists of antenna unit with in-built adapting transformer, six disc elements and six cone elements. Antenna elements are produced from composition materials strongly resistant to atmospheric corrosion. All components can be carried in a transport bag.
PN (RN): 2036.100.68
KCM: 0064681101609
NSN: 5985160039132
| Frequency range | 30 MHz to 90 MHz |
|---|---|
| Impedance | 50 Ω |
| VSWR | max. 3 |
| Gain | 2 dBi |
| Power rating | max. 100 W CW |
| Polarisation | vertical |
| Horizontal radiation pattern | omnidirectional |
| Connector | N (female) |
| Wind | 120 km/h |
| Operating temperature range | -40 °C to +70 °C |
| Antenna height (overall) | 3 m |
| Disc diameter | 2.05 m |
| Weight | 6.1 kg |
